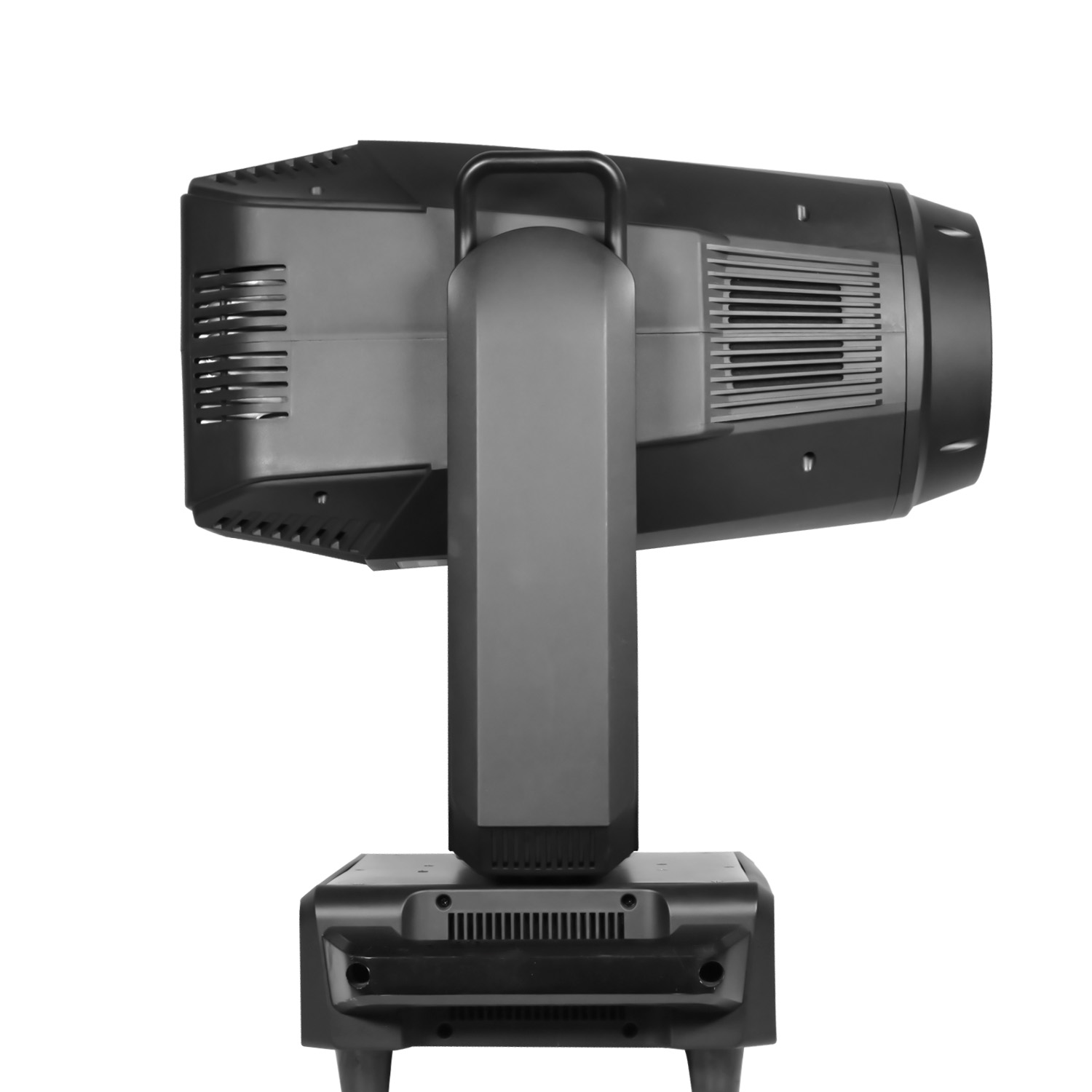

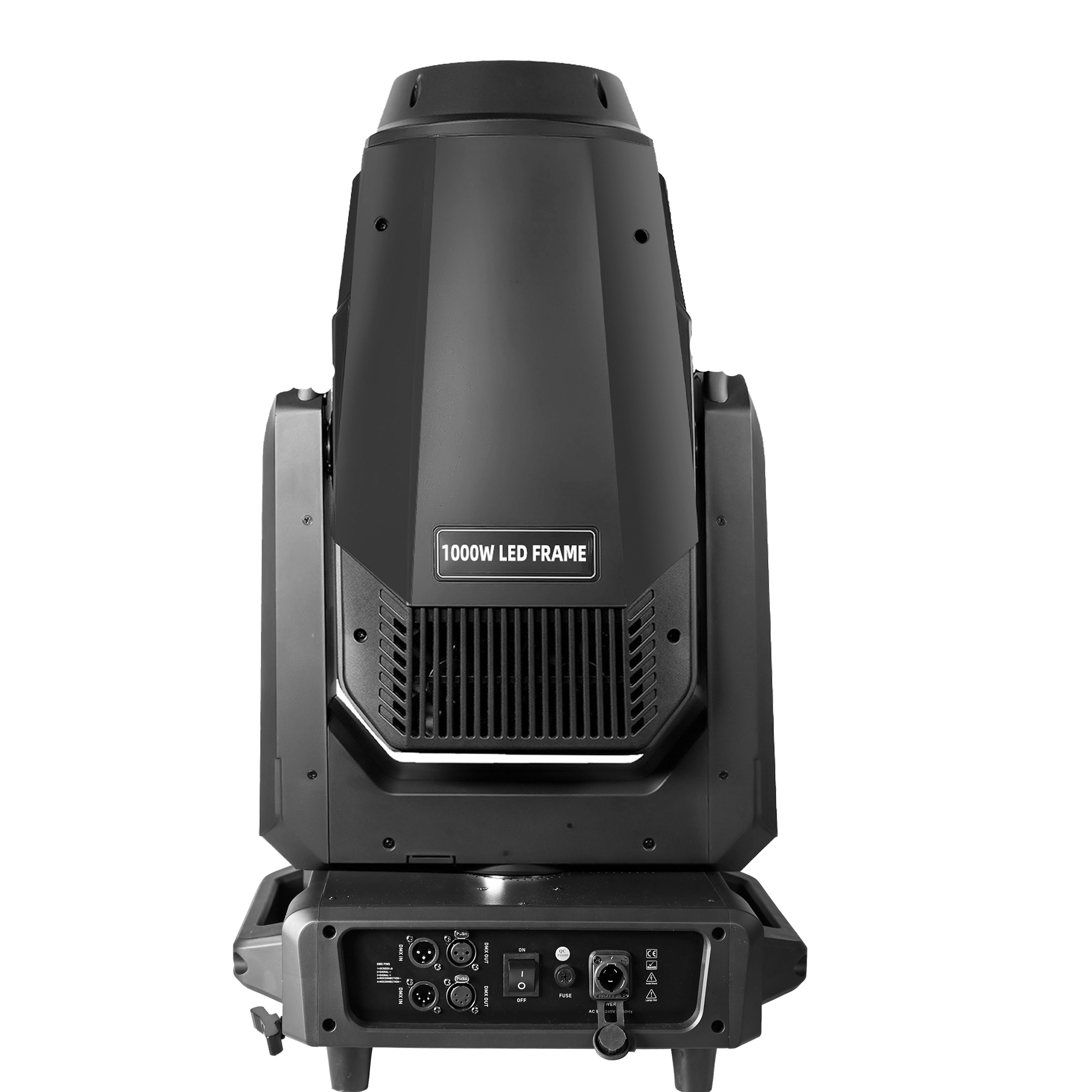

1000W LED BSWF cutting light PROFILE FRAME CMY+CTO+ZOOM For Stage Party Show DJ Event Wedding Club Theater
Brand: HQLIT
1000W LED module
Light source life: 20000 hours
Beam angle: electron linear zoom 5-50 degrees
CMY color mixing system
CTO color temperature correction (7200-3200K)
Color plate: 4 colors+rainbow
Fixed gobo : 9 fixed gobos+white
Rotating gobo: 6 optional gobos (pluggable)
Parameters

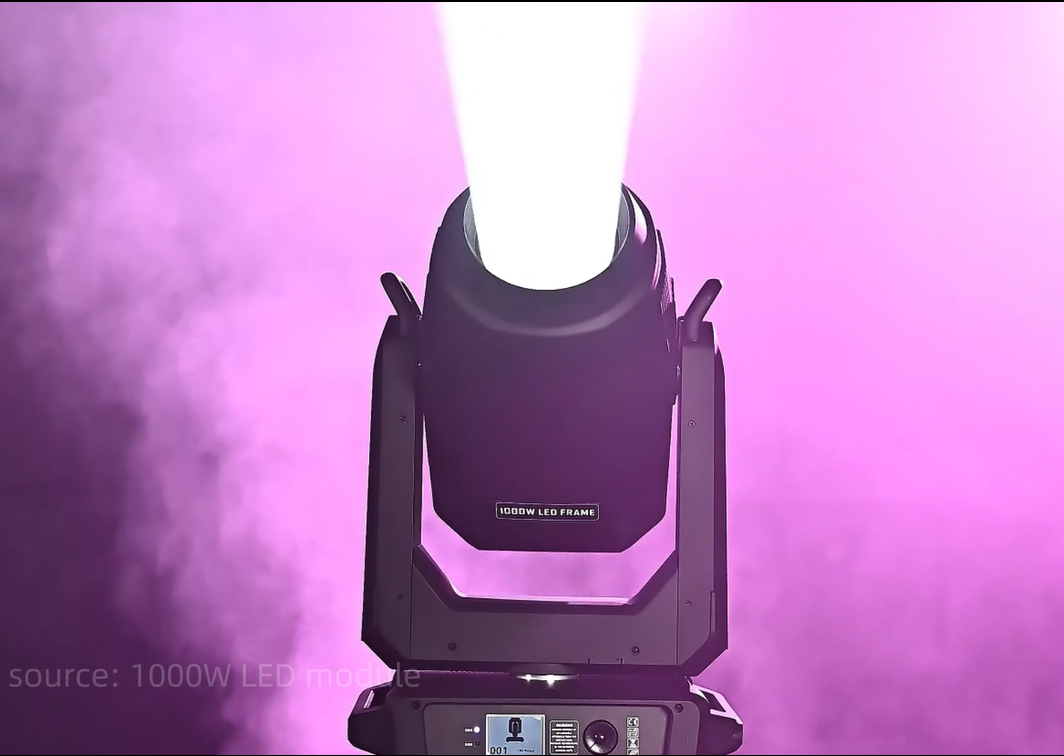

Light source specification: 1000W LED module
Light source life: 20000 hours
Beam angle: electron linear zoom 5-50 degrees
Color rendering index: adjustable display mode, standard mode Ra >70, high display mode >90
Color mixing system: Independent CMY color mixing system
Color temperature adjustment: CTO color temperature correction (7200-3200K)
Light source color temperature: 7000K
Color plate: 4 colors+rainbow
Fixed gobo : 9 fixed gobos+white, which can change speed and shake
Rotating gobo: 6 optional gobos (pluggable), variable speed jitter and two-way rotation
Effect tray: Super dazzling simulation of dynamic flames, gurgling water and other dynamic effects
Prism: 4 facet prisms, can be independently bidirectional rotation

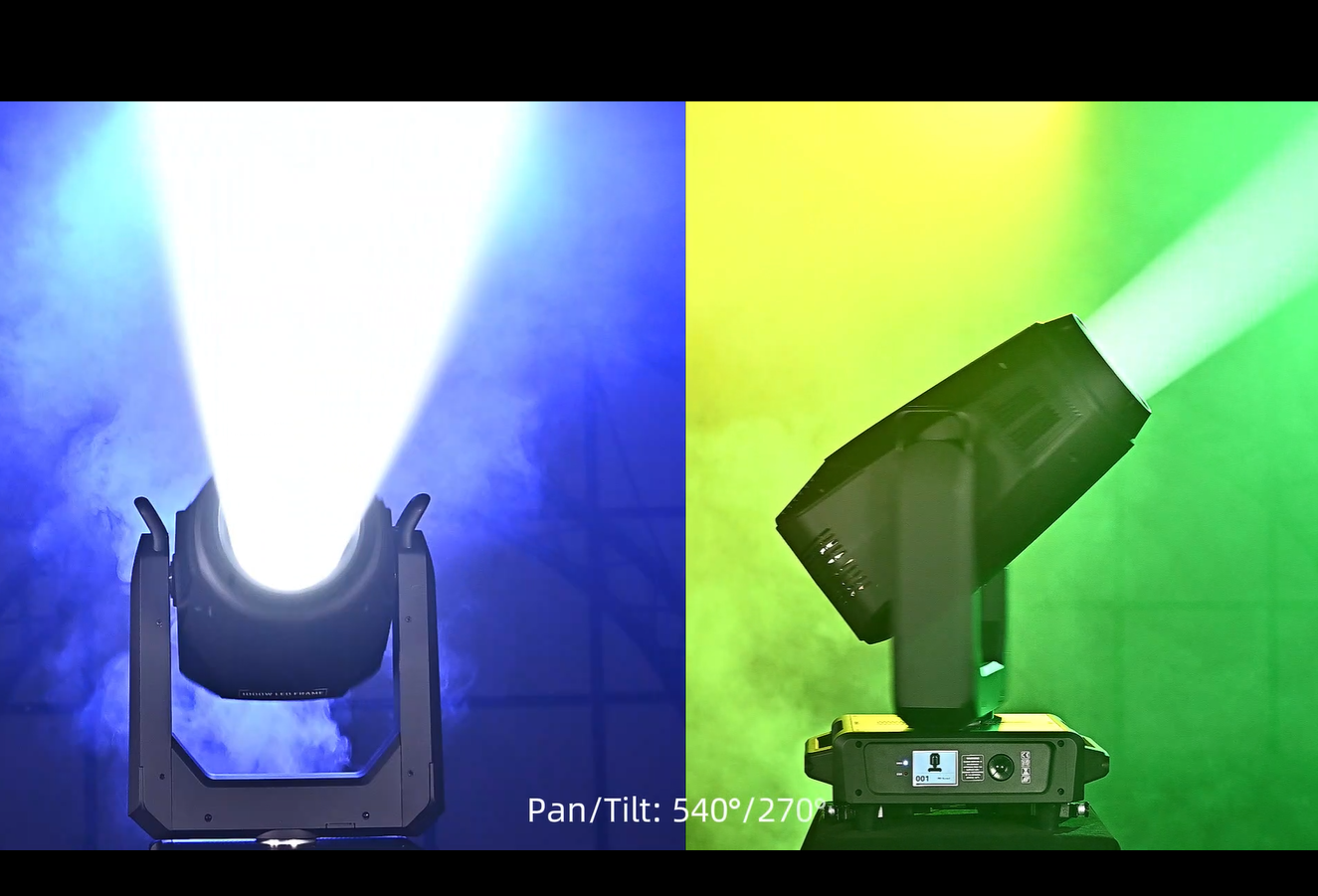

Pan/Tilt: 540°/270°, automatic return and 16 Bit precision fine-tuning
Cutting system: 4 independent cutting pieces, each piece can be individually closed light, can be rotated 90°
Dimming: 0-100% linear adjustment
Strobe: 0-25Hz fast electronic stroboscopic
Frost: 1 independent frost,0-100% linear atomization, light spot natural soft
Input voltage: AC90V-240V /50Hz-60Hz
Channel mode: 39CH
Control protocol: Standard DMX512 protocol
Signal interface: 3-core+5-core XLR signal input/output
Display mode: LCD touch screen, can reverse 180° display
Energy saving sleep: Automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Cooling system: efficient cooling system, intelligent speed fan, built-in temperature sensor, automatic cooling system
Product appearance: flame retardant, high temperature resistance, with folding clamps
Net weight: 34KG
Product size: 42.6*28.9*75.1CM
Protection level: IP20
Carton packing size: 74.5*70.5*61.5CM
G.W(Carton): 41.3KG
Flight case packing size: 95*58*83CM
G.W(Flight case): 96KG
Perfect Effect
