Parameters

Laser power:
12 watts (2 watts [red: 500MW 638nm; green: 500MW 520nm; blue: 1W 445nm] *6pcs)
18 watts (3 watts [red: 700mW 638nm; green: 800MW 520nm; blue: 1.5W 445Nm] *6PCS)
30 watts (5 watts [red: 1 watt 638nm; green: 1 watt 520nm; blue: 3 watt 445nm] *6pcs)
Cooling method: the whole machine is cold and cooling down
signal mode: analog switching modulation voltage: ≦ 30K
Laser divergence angle: <1.2mrad (full -angle)
Laser spot size: 3*6.5mm at the size of the outlet
Scanner : 25KPPS*6PCS High-quality Coffee Membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm)
Scan angle: maximum 60 °
Laser service life: ≥10000 hours (test results in the constant temperature environment)
Laser level: Class IV
Protection level: IP54
Control mode: SD (more than 200 effects), sound control, automatic operation, DMX 18/27 *6, main/from mode, ILDA software control

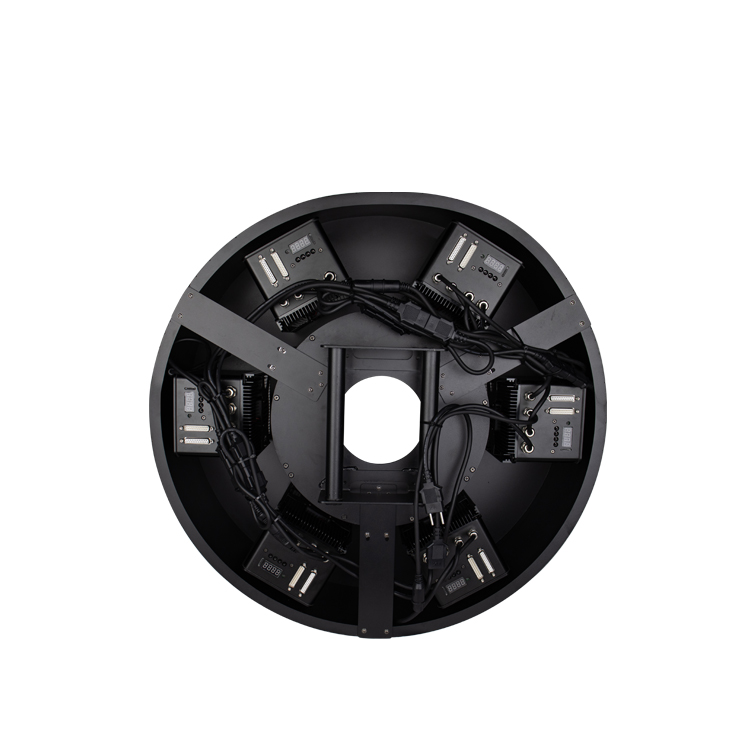

Back control: AT-S2 digital display, 3 stitches 512 in/out, DB25 in/out, power supply input/output, fuse
Work temperature: -10C-45 ° C
Voltage: 100-250V
Rated power: 400W
Application: stage, DJ, bar DISCO, club, bar, etc.
Warranty: 1 year

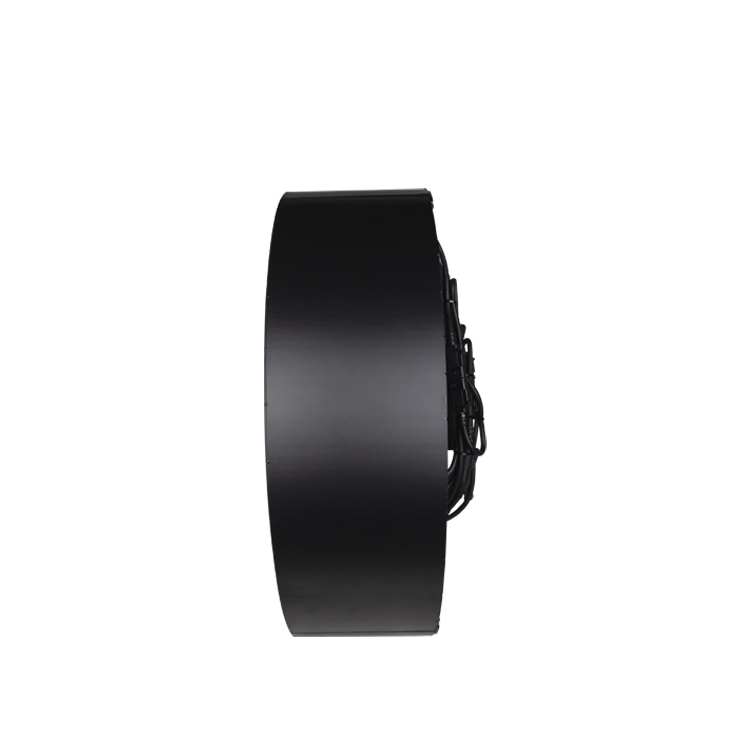

Size:70*70*28cm（L * W * H） Net Weight：30kgs

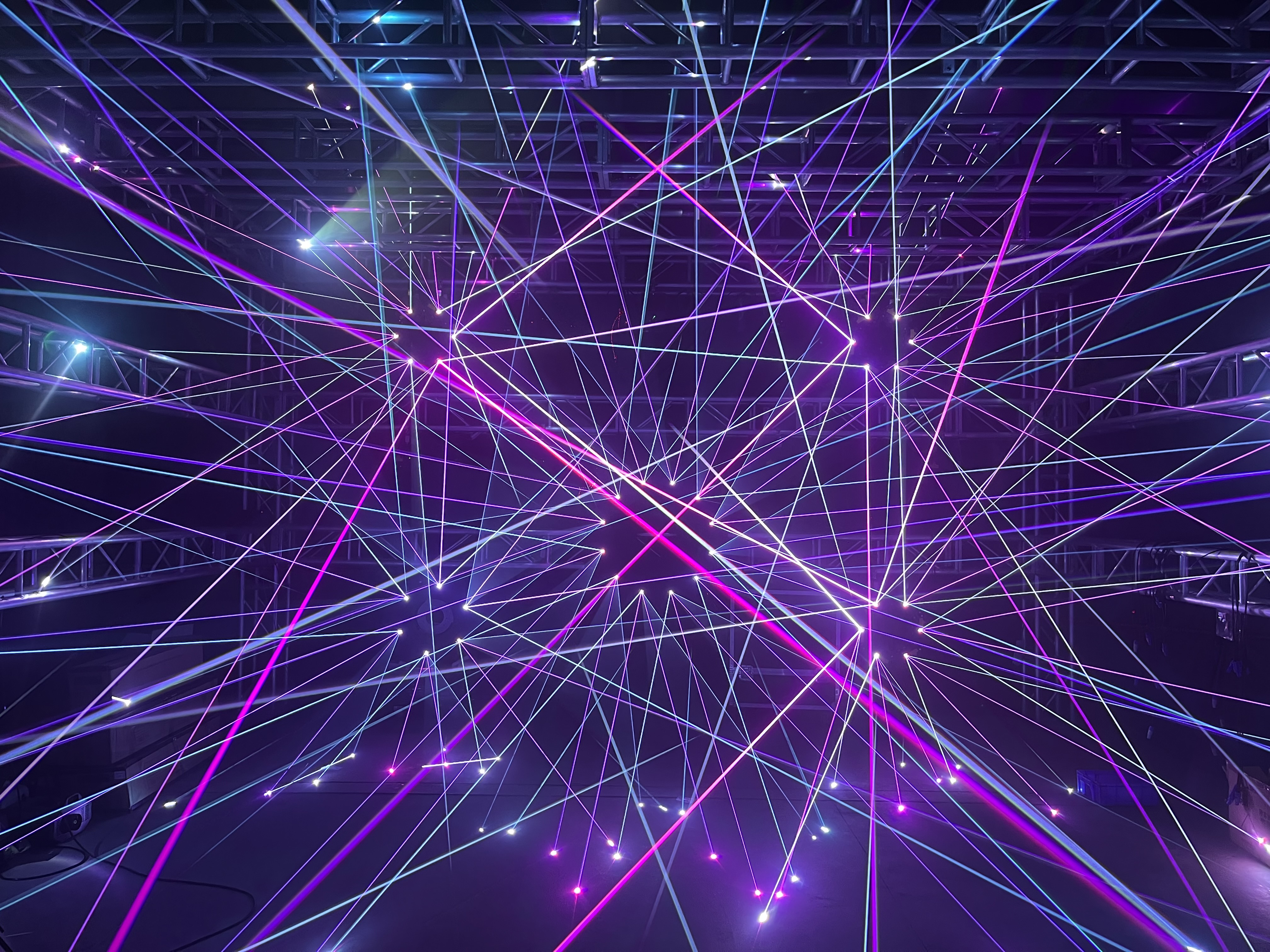

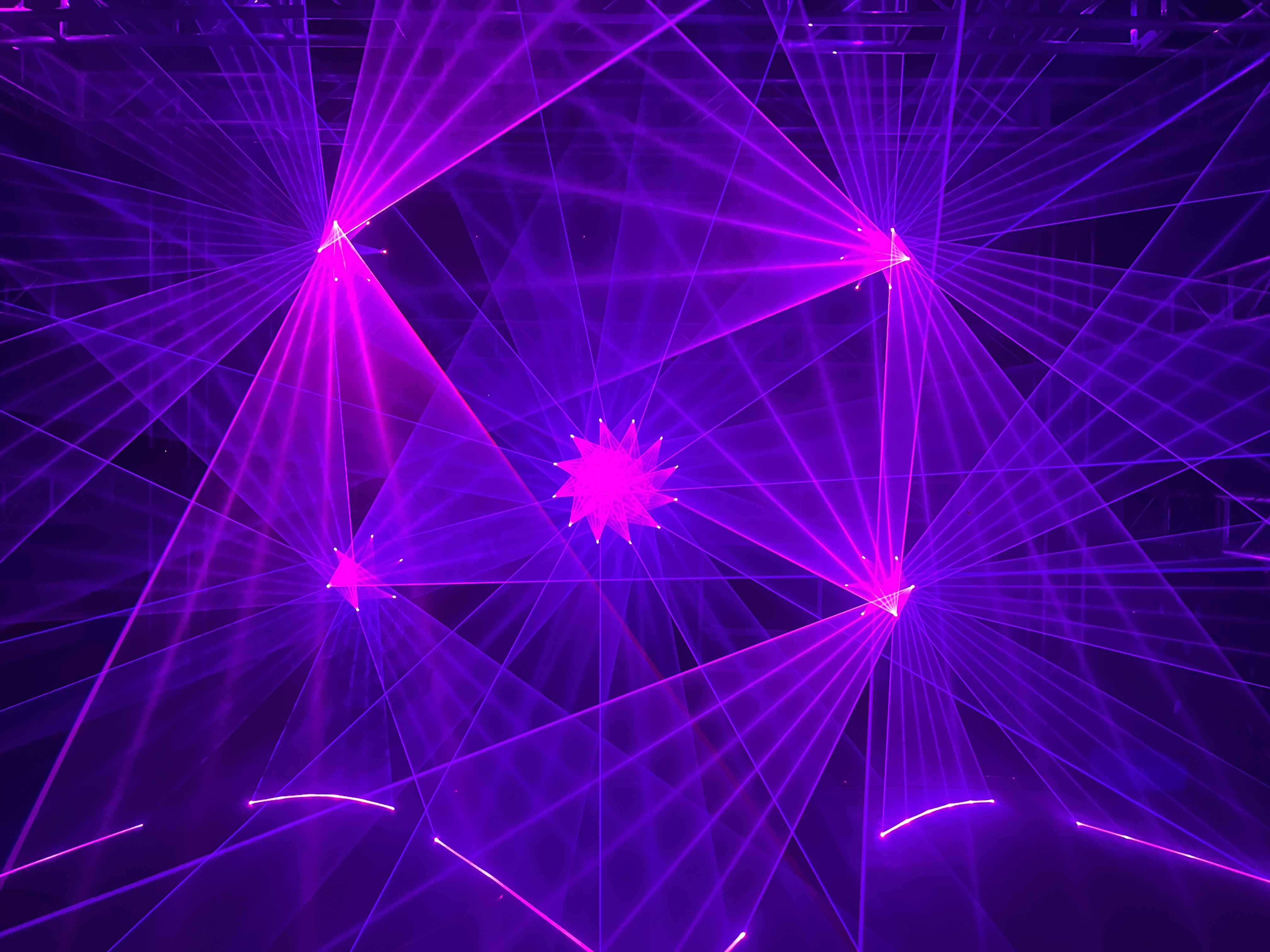

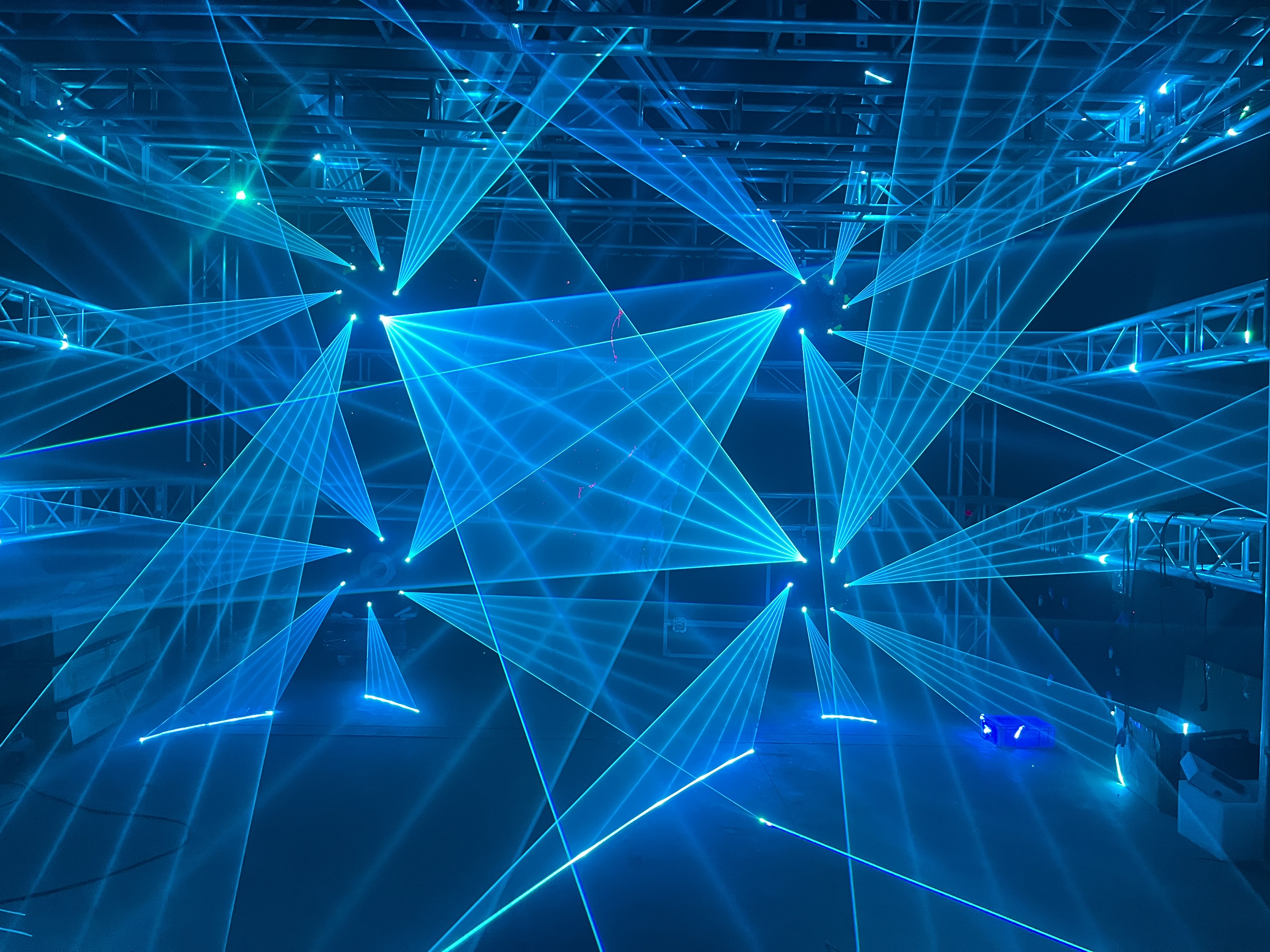

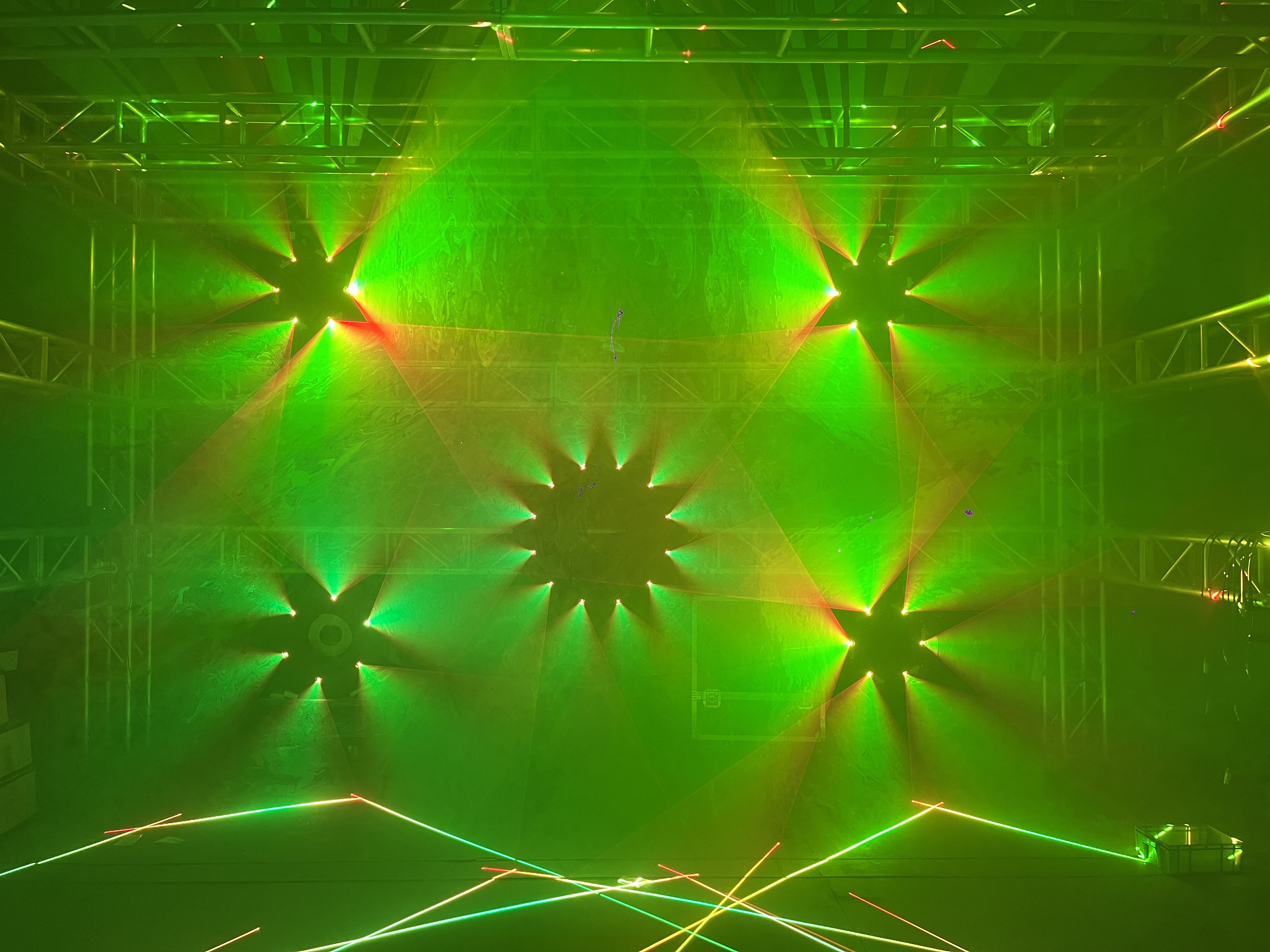

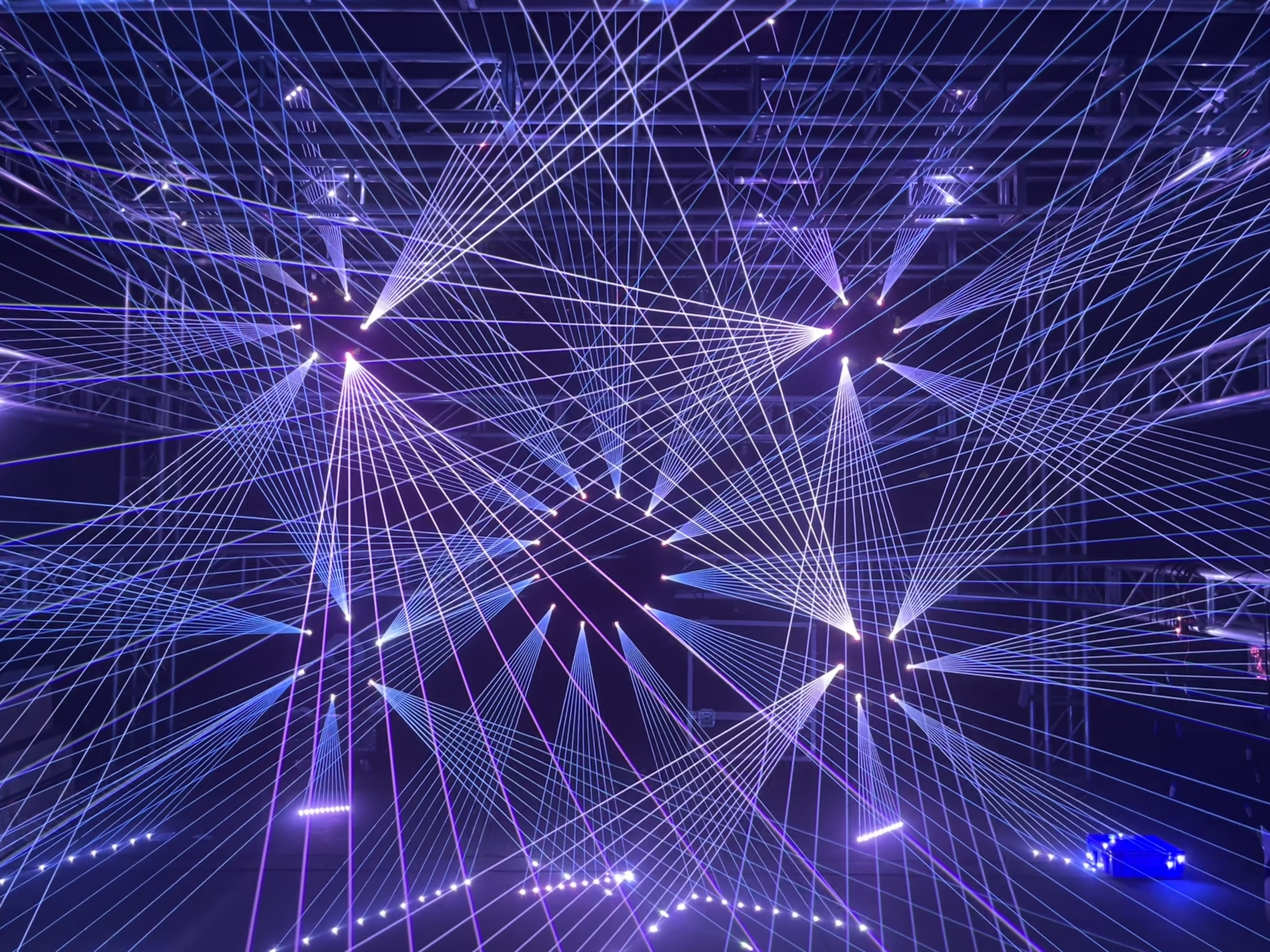

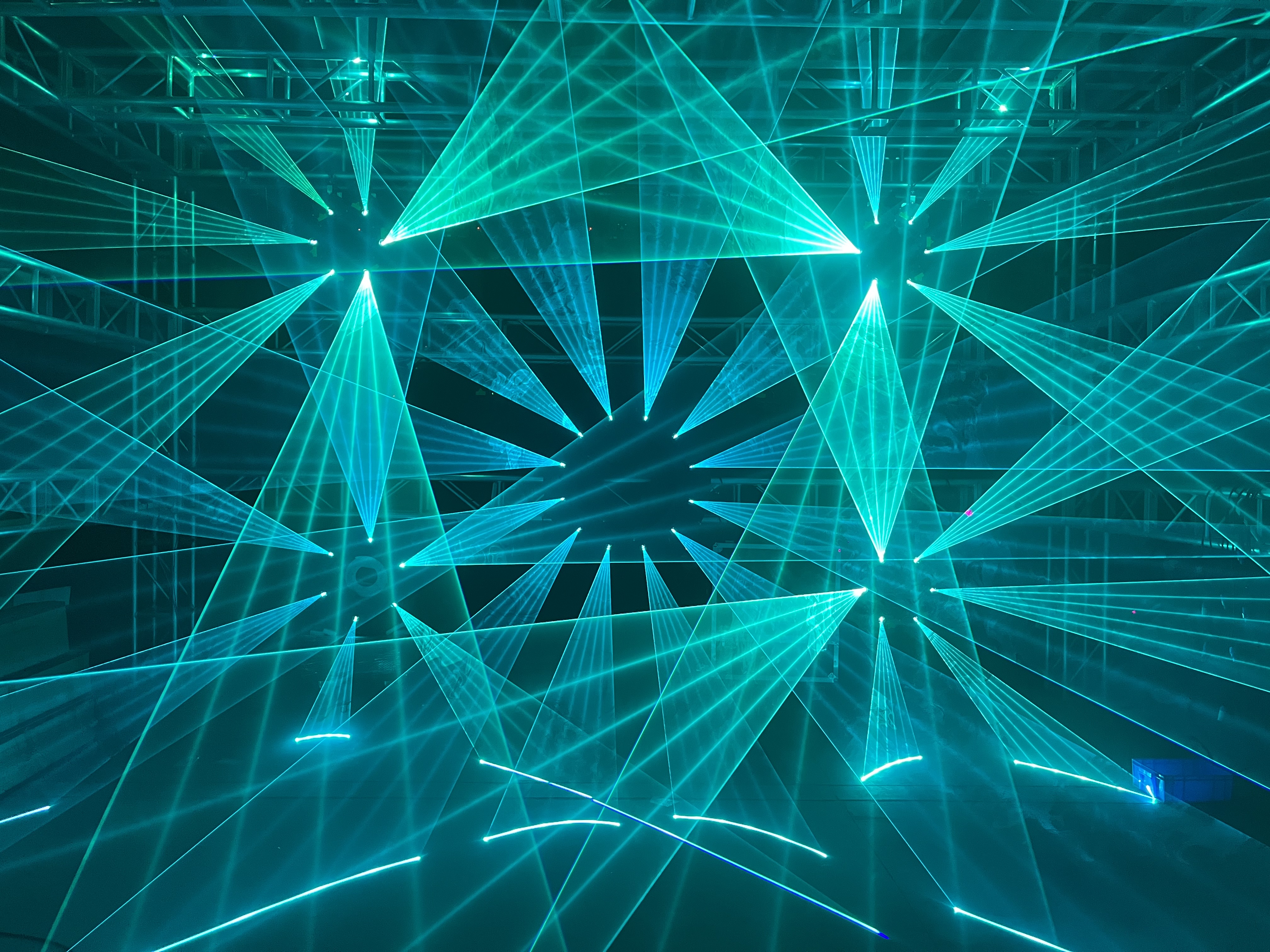

Perfect Effect
