Parameters

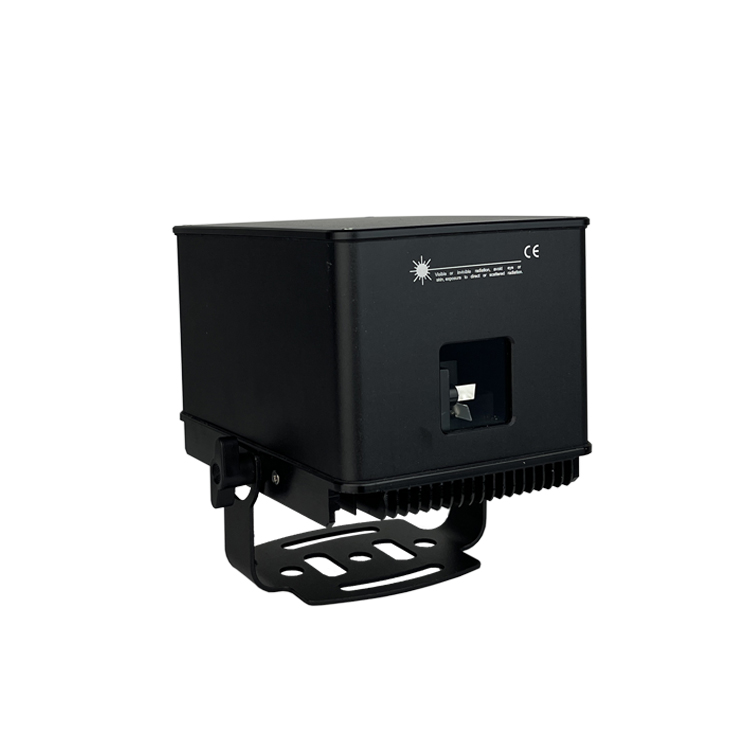

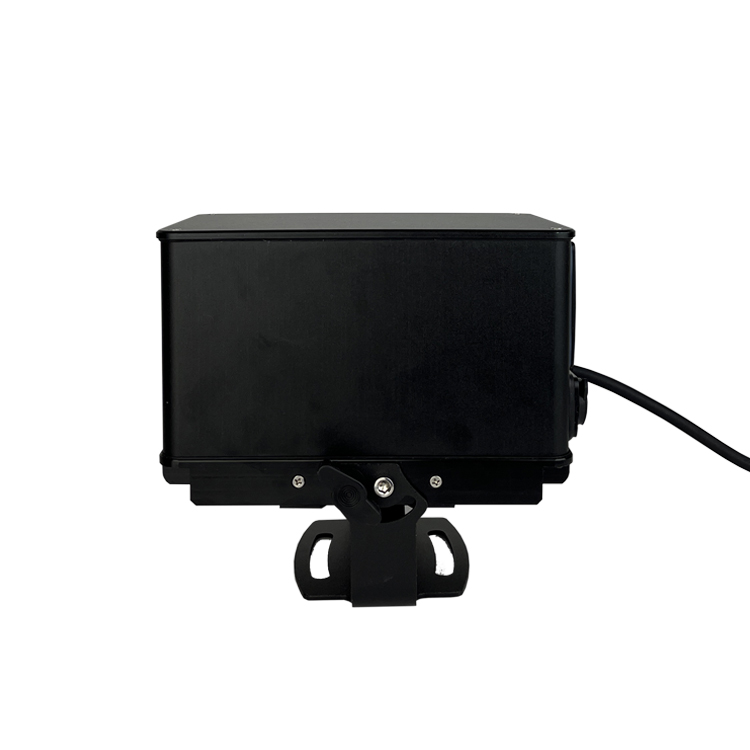

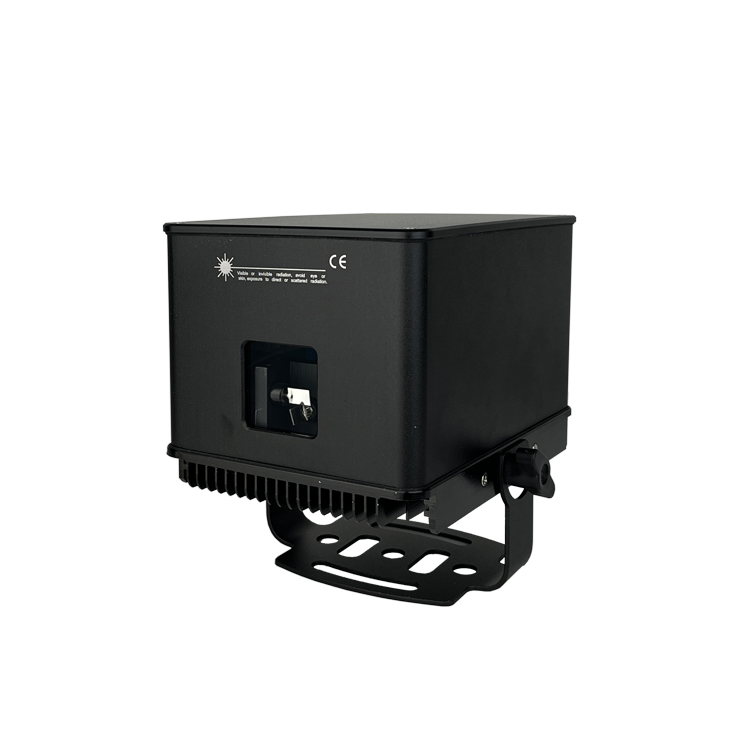

Product features: Integrated structural design, 100% sealing, Waterproof level reaches IP65
Laser power: 3w[ R:700mw 638nm;G:800mw 520nm; B:1.5w 445nm]
Cooling method: integrated aluminum radiator, the whole machine is cold and cooling down
Control signal mode: Analog  modulation voltage: ≦ 100K
Laser divergence angle: <1.2mrad (full -angle)
Laser spot size: 3*6.2mm at the size of the outlet
Scanner: AT 15KPPS High-quality medium membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm)
Scan angle: maximum 60 °
Laser service life: ≥10000 hours (test results in the constant temperature environment)
Laser level: Class IV
IP rate：IP65
Control mode: SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode,

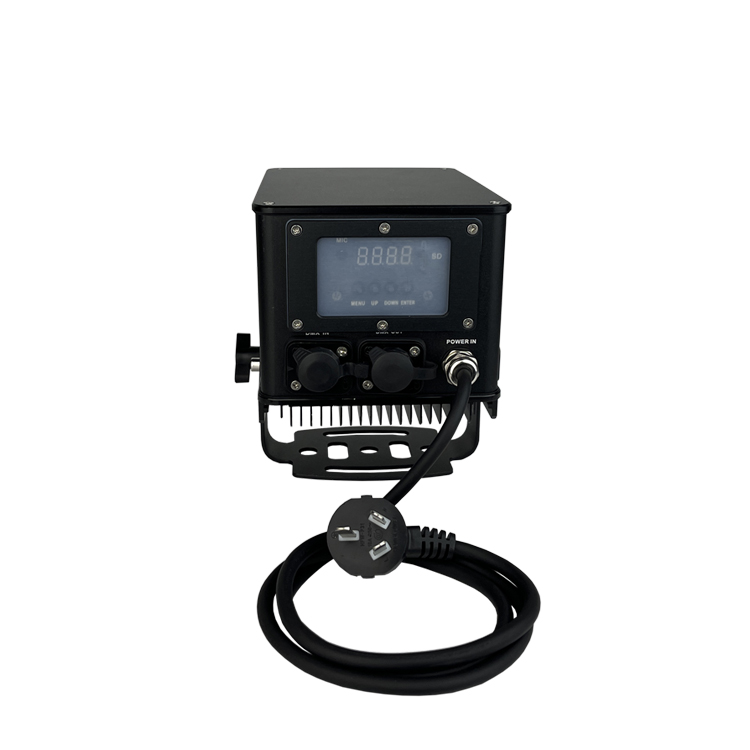

Back control: AT-S2 digital display, 3 stitches 512 in/out, power input,
Work temperature: -10C-45 ° C
Voltage: 100-250V
Rated power: 20W
Application: Outdoor performance, outdoor advertising, outdoor scenic spots park, etc.

Size: 14*20*17cm (L* W * H) --net weight: 2kgs；

Carton packaging: 27*25*14cm/set/2.7kgs. 53*29*31cm/4 sets /12kgs

Waterproof IP65

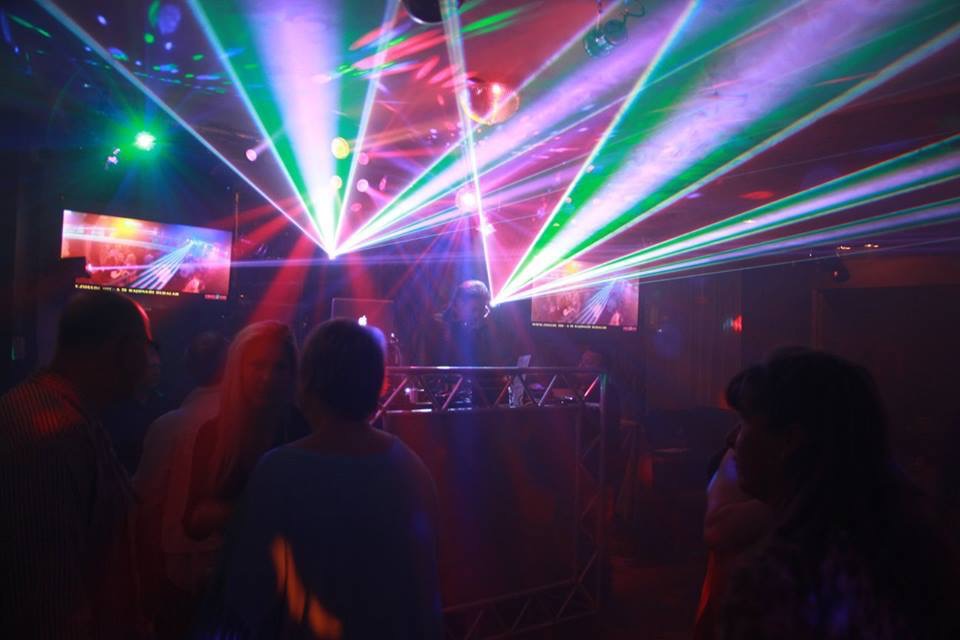

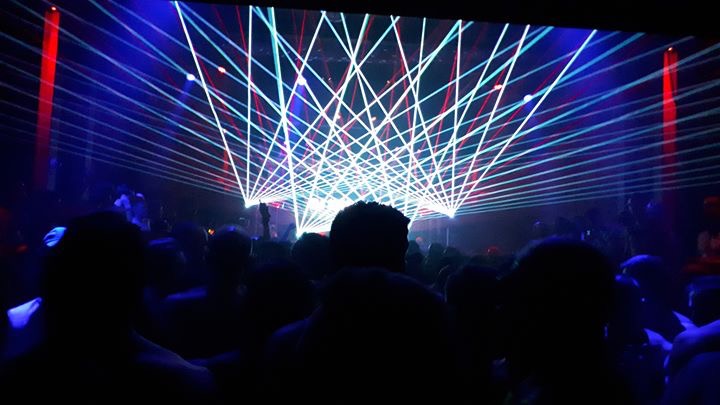

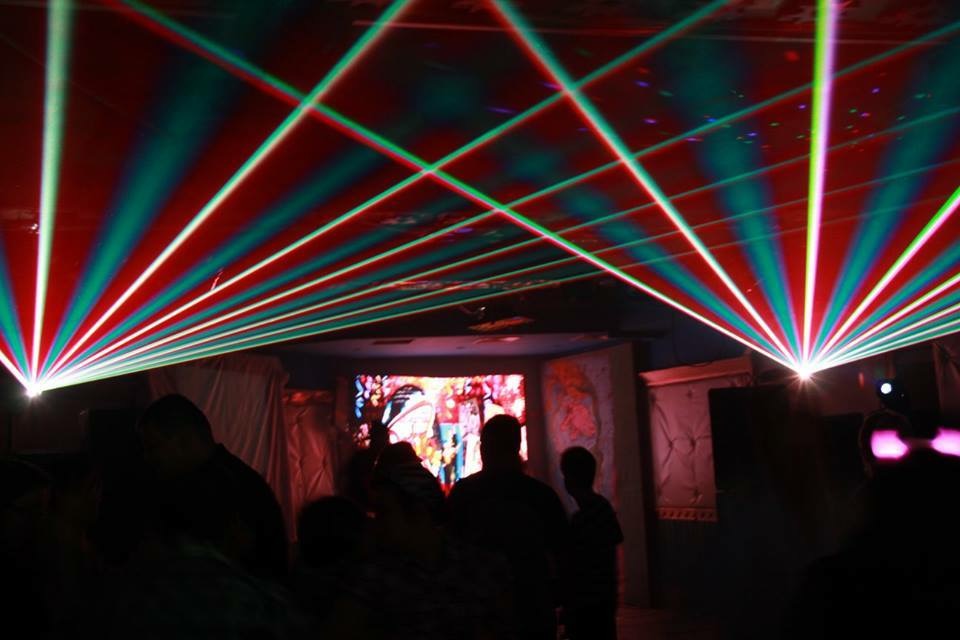

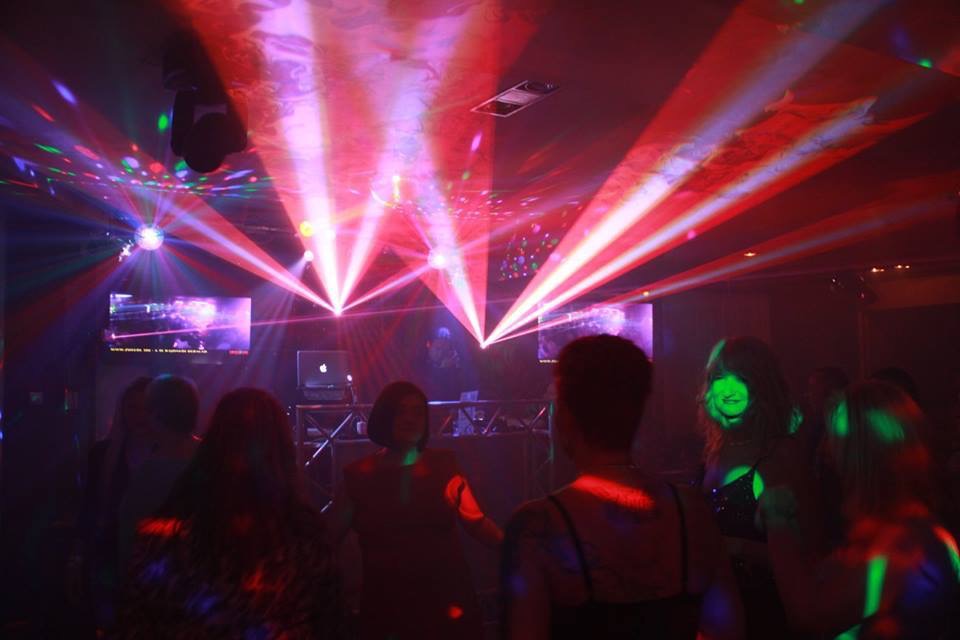

Perfect Effect
