Parameters

Power: 42W [Red: 12W 638nm; Green: 13W 525nm; Blue: 18W 455nm]
Cooling method: The laser is equipped with TEC refrigeration, and the whole machine is air-cooled to cool down
Control signal mode: TTL/analog automatic switching Modulation voltage: ≦100K
Laser divergence angle: <1.6mrad (full angle)
Laser spot size: the size of the light outlet≦8mm
Galvanometer: AT50LB 30kpps galvanometer high-quality dielectric film reflectivity >99% @45° incident (coverage wavelength: 400nm-680mm)
Scanning Angle: +- 30° (60°)
Waterproof grade: IP65
Laser class: Class IV
Outdoor temperature use: -40-50° (built-in constant temperature system)
Base adjustment angle: + - 30°
Power consumption: 1200 watts
Laser service life: ≥10000 hours (keep the test results in a constant temperature environment)
Power supply: 110V-240v 50Hz/60Hz
Effect: full-color animation laser, using high-speed galvanometer scanning technology, design broken pen, flash, rotation, rolling, moving, stretching,
Zoom, gradually painting, speed, color and other effects, with pattern size adjustment function, built-in beam and animation pattern, do beam animation, laser advertising, laser projection
  Control mode: automatic speed light, automatic animation, DMX, ilda computer control.

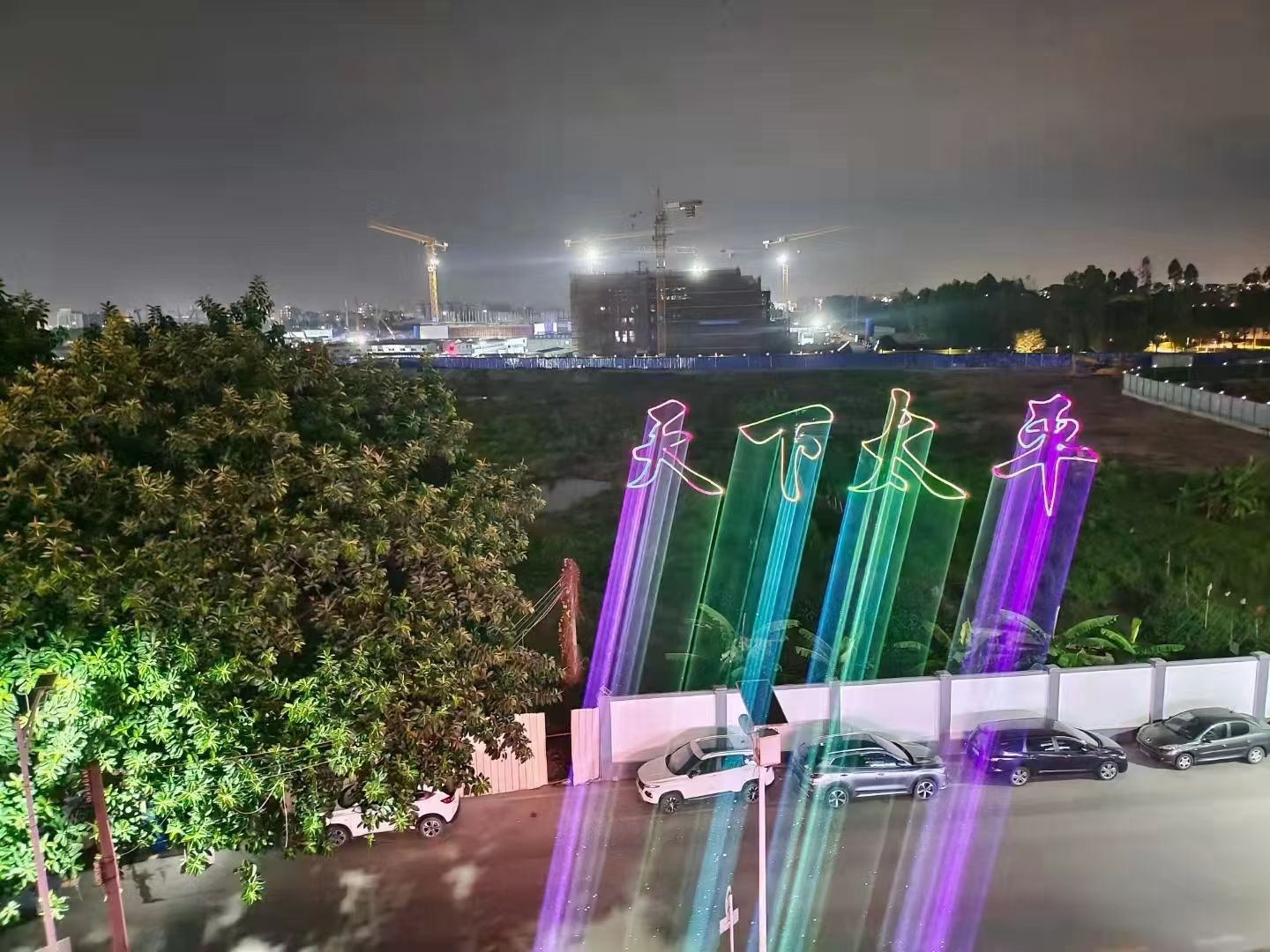

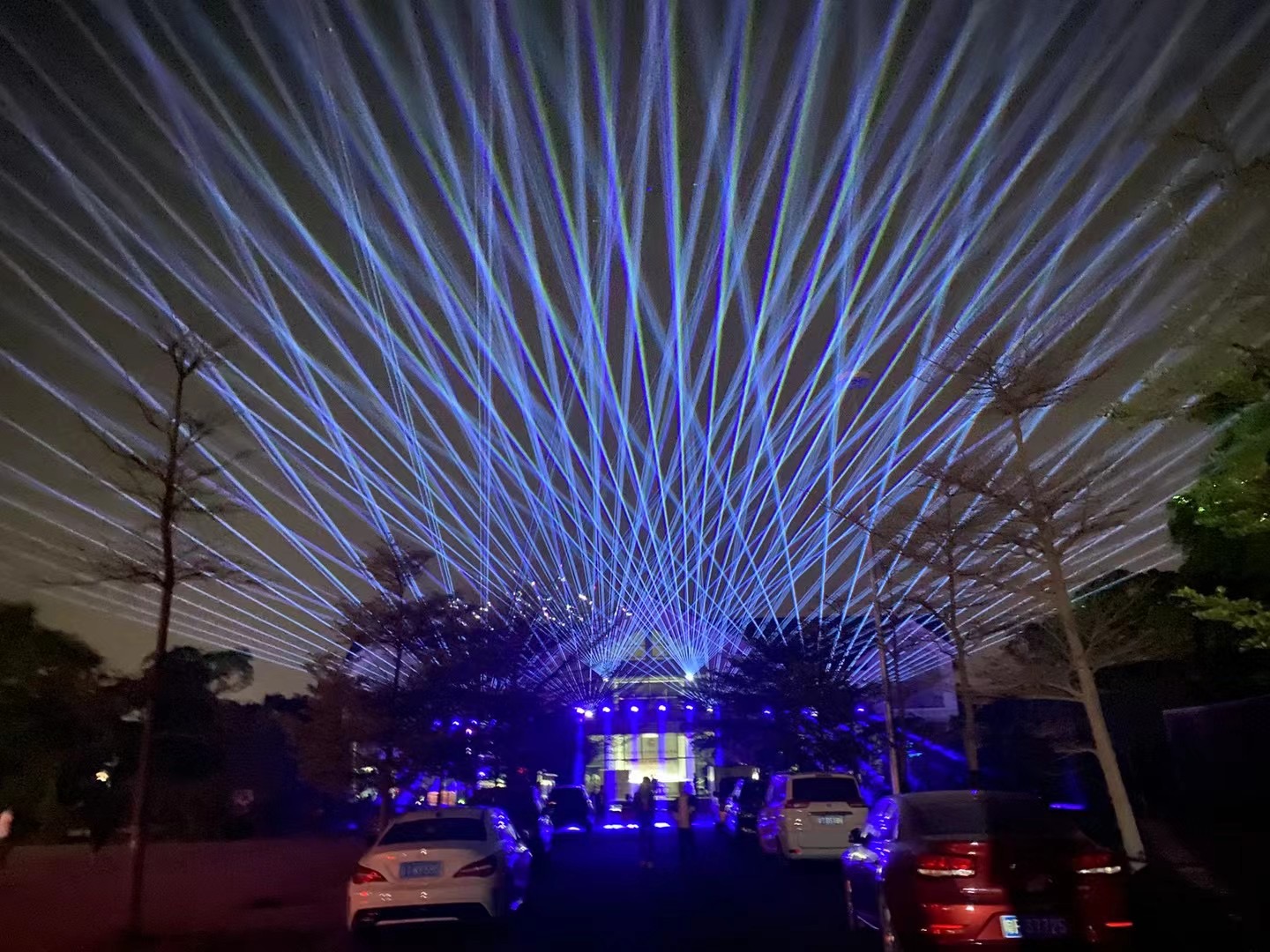

Applications: outdoor lighting, outdoor performances, outdoor landmarks, advertising

Product size: 41*54*37cm Gross weight: 35KGS
flightcase ：62*62*54cm  Gross weight:55KGS

Waterproof IP65

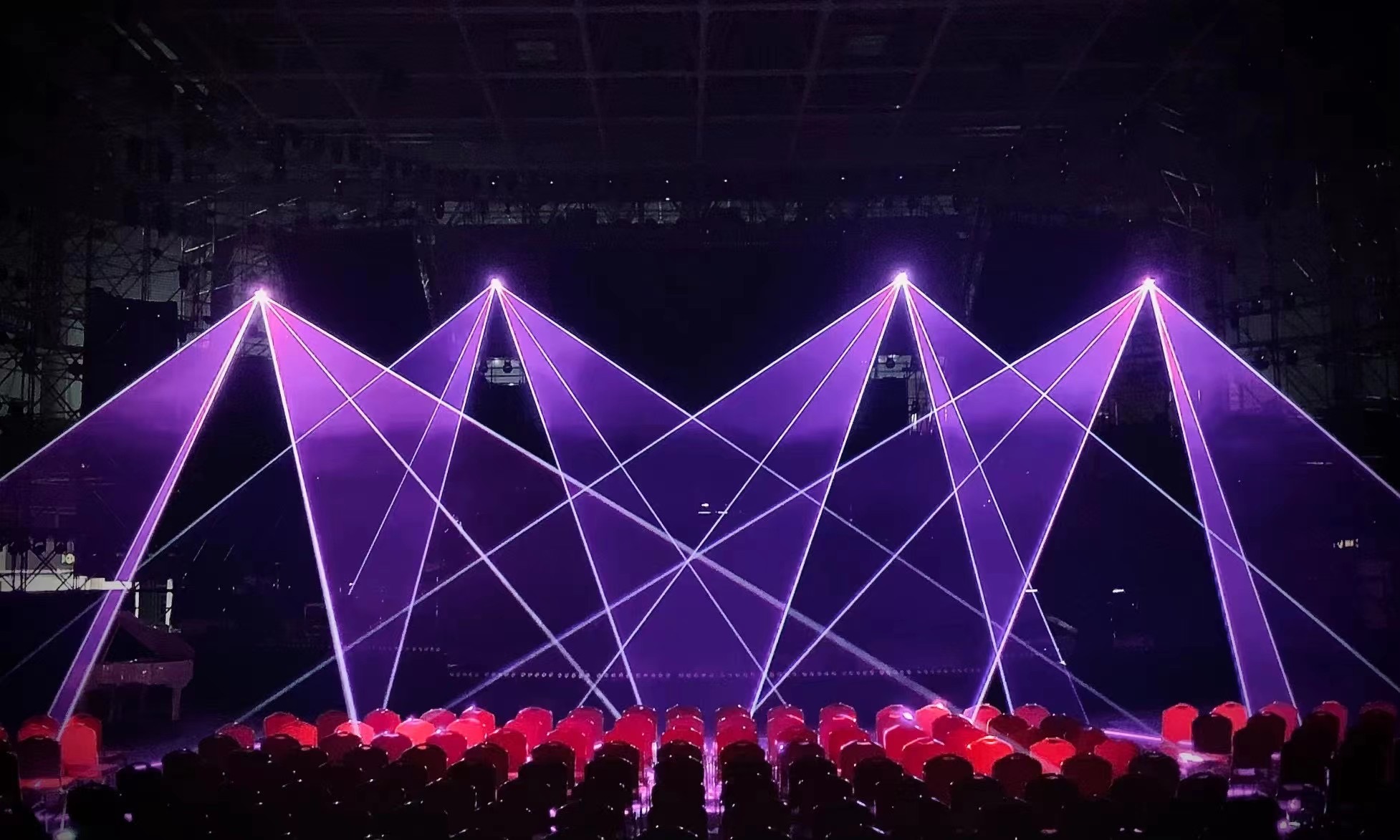

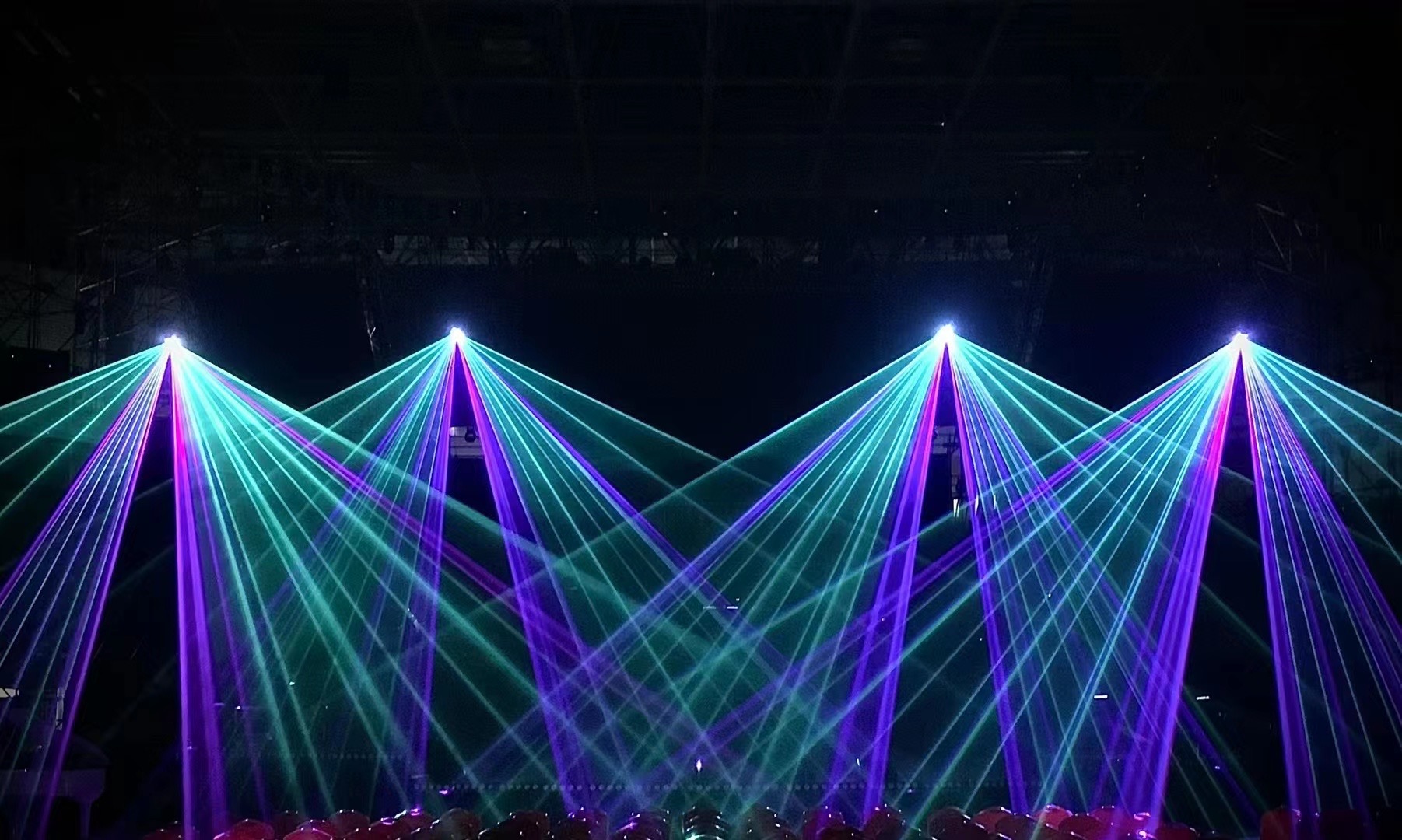

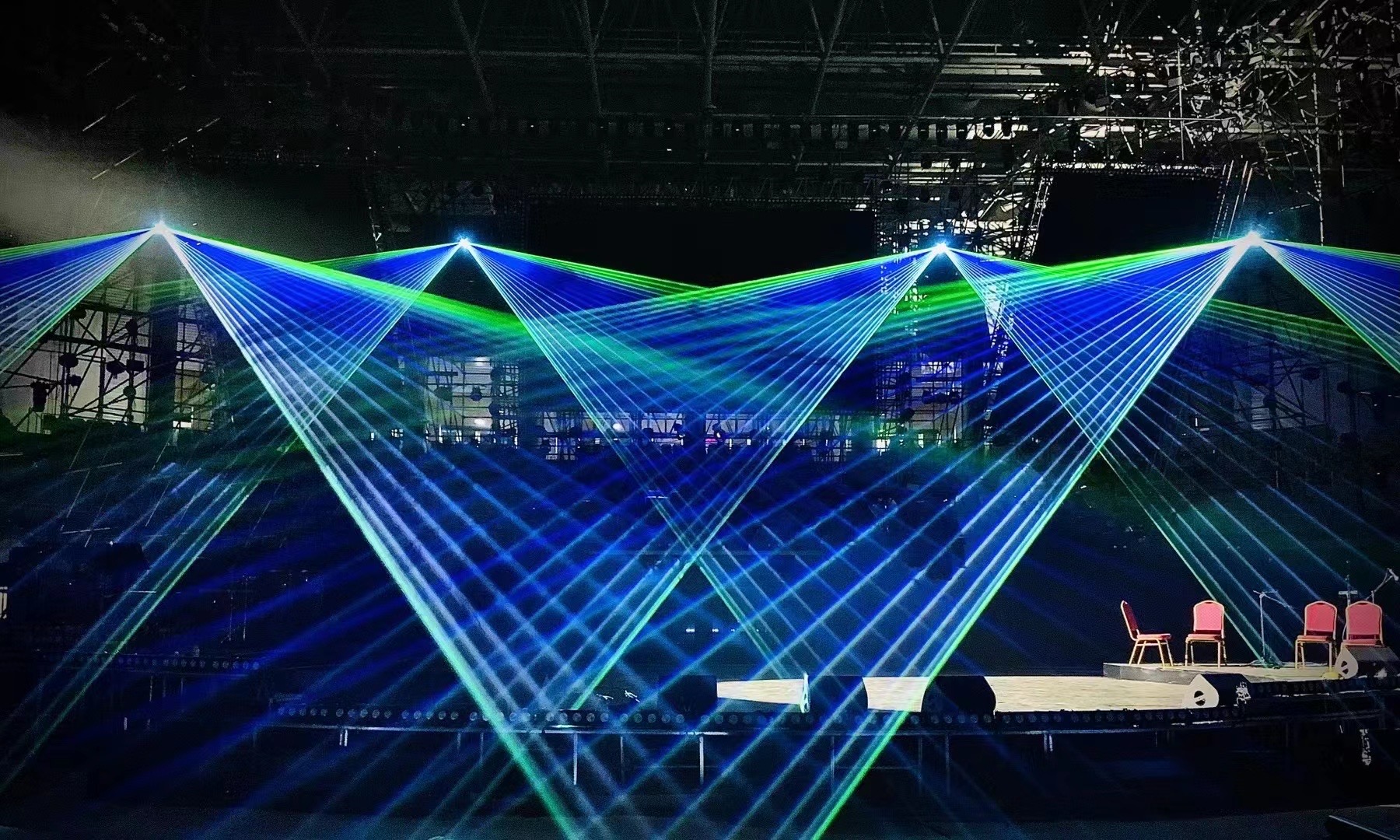

Perfect Effect
