Parameters

Laser power: 15W [Red: 5W 638nm; Green: 5W 525nm; Blue: 5W 455nm]&21W [Red: 6W 638nm; Green: 6W 520nm; Blue: 9W 445nm]
Cooling method: The laser is cooled with TEC, and the whole machine is cooled by air cooling
Control signal mode: TTL/analog automatic switching Modulation voltage: ≦100K
Laser divergence angle: <1.2mrad (full angle)
Laser spot size: 5*6.2mm at the light outlet
Galvanometer: AT50M 40kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle: up to 60°
Laser service life: ≥10000 hours (maintain the test results in a constant temperature environment)
Laser class: Class IV
IP rate：IP65
Control mode: SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control
Back Controls: AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in, fuse
Working temperature: -10C-45°C
Voltage: 100-250V
Rated power: 200W
Applicable: Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc..

Size:  28*32*20/30cm (L*W*H) Net Weight: 14kgs
Carton Packing: 48*39*29cm Gross Weight: 20kgs

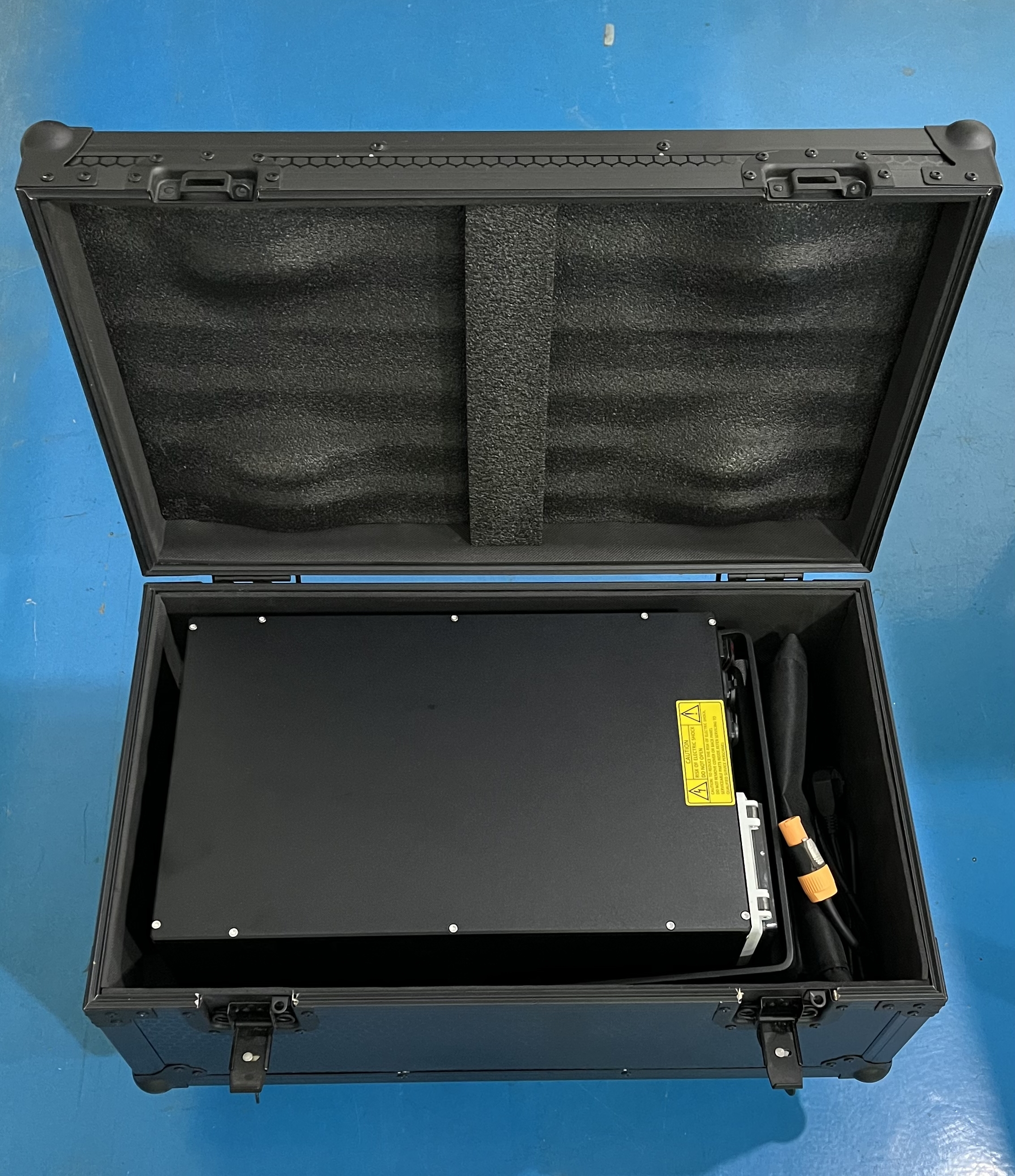

flightcase size: 42.5*69*40.5cm Gross weight: 32KGS
pelican case ：59*47*29cm cm   Gross weight: 28KGS

Waterproof IP65

Perfect Effect
