Parameters

Laser Power: 42W [Red: 12W 638nm; Green: 13W 525nm; Blue: 18W 455nm]
Cooling method: The laser is cooled with TEC, and the whole machine is cooled by air cooling
Control signal mode: TTL/analog automatic switching Modulation voltage: ≦100K
Laser divergence angle: <1.2mrad (full angle)
Laser spot size: 6*6.2mm at the light outlet
Galvanometer: AT50LB 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle: up to 60°
Laser service life: ≥10000 hours (maintain the test results in a constant temperature environment)
Laser class: Class IV
IP rate：IP65
Control mode: SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control

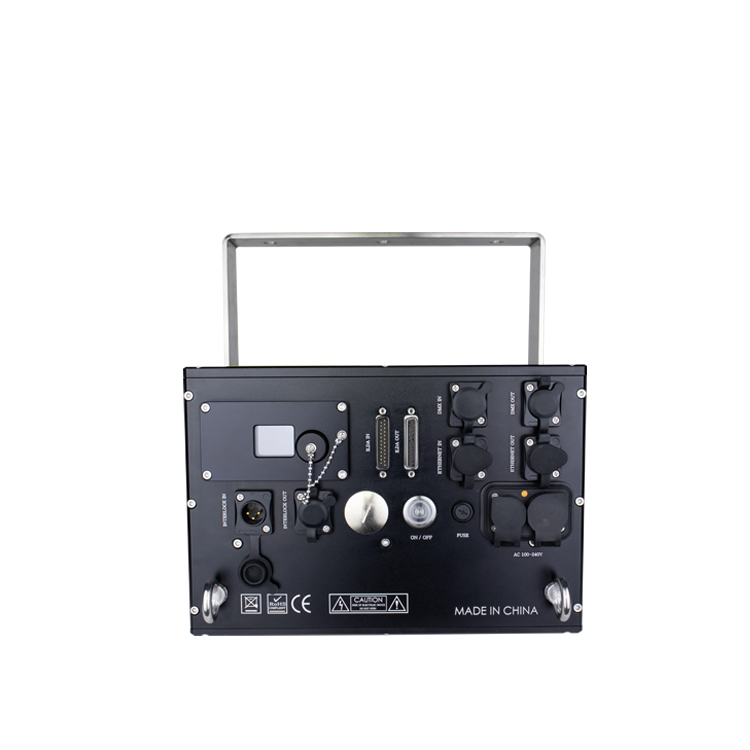

Back Controls: AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Working temperature: -10C-45°C
Voltage: 100-250V
Rated power: 450W

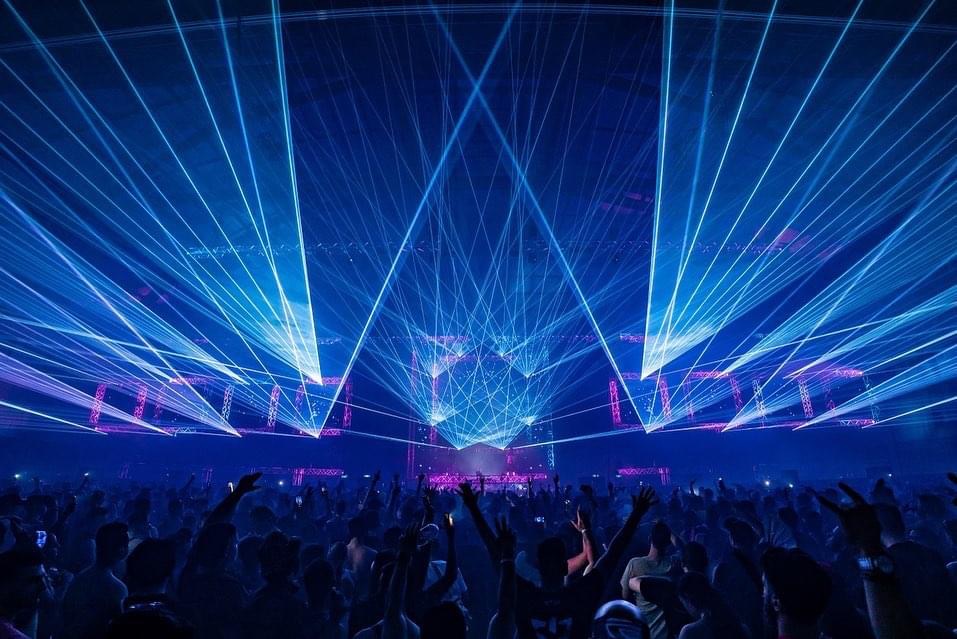

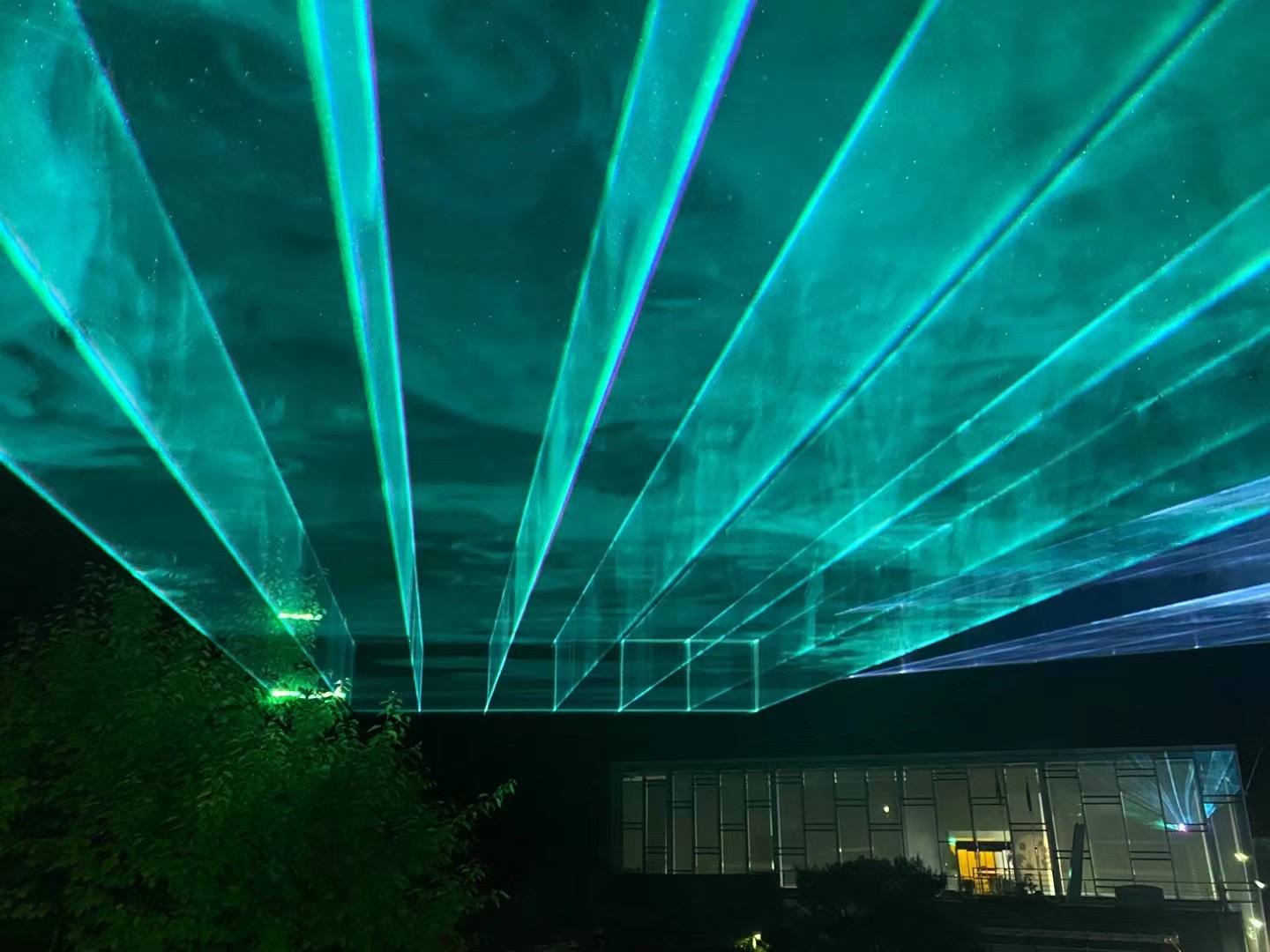

Applicable:  Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.

Size:  35*50*22/37cm (L*W*H) Net Weight: 26kgs
Carton Packing: 61*42*331cm Gross Weight: 28kgs
flightcase size: 42.5*69*40.5cm Gross weight: 39KGS
pelican case ：67*51*36cm   Gross weight: 38KGS

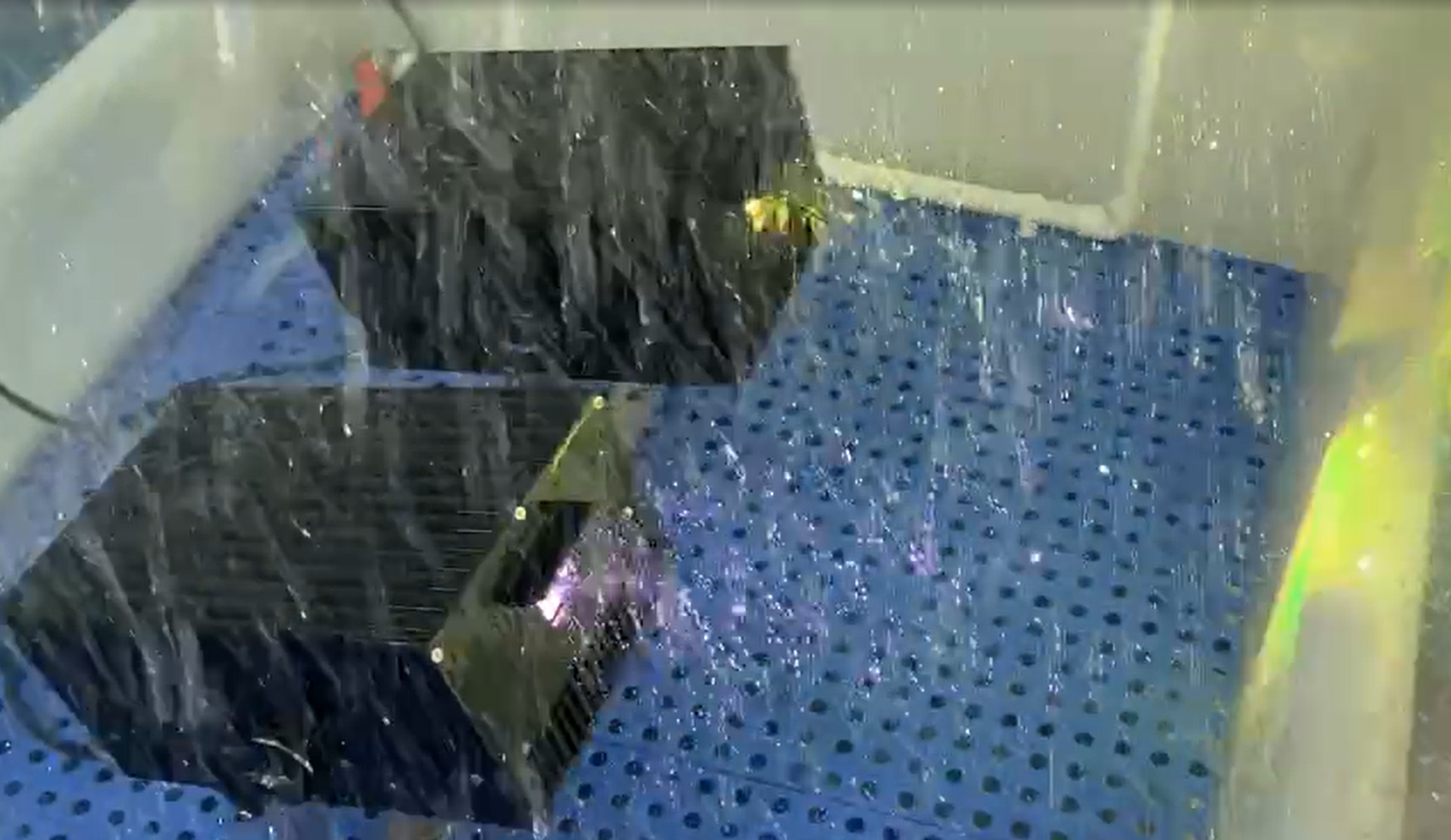

Waterproof IP65

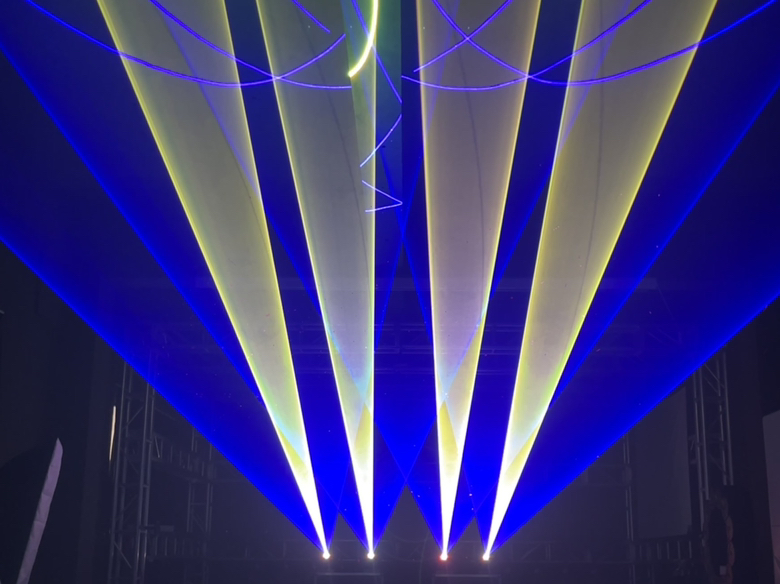

Perfect Effect
