Parameters

Product features: Integrated structural design, 100% sealing, effectively preventing the entry of tobacco oil

Phone app system have several language can select:chinese,english,spanish,russian,German，Italian，French，Vietnamese，Arabic

Laser power:

1w[ R:300mw 638nm;G:200mw 520nm; B:500mw 445nm] ；

2w[ R:500mw 638nm;G:500mw 520nm; B:1w 445nm]

3w[ R:700mw 638nm;G:800mw 520nm; B:1.5w 445nm]

4w[ R:1W 638nm;G:1W 520nm; B:2W 445nm]

5w[ R:1W 638nm;G:1W 520nm; B:3W 445nm]

6w[ R:1.5W 638nm;G:1.5W 520nm; B:3W 445nm]

Cooling method: integrated aluminum radiator, the whole machine is cold and cooling down

Control signal mode: TTL/Analog automatic switching modulation, voltage: ≦ 100K

Laser divergence angle: <1.2mrad (full -angle)

Laser spot size: 5*6.2mm at the size of the outlet

Scanner: AT 15KPPS High-quality medium membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm)

Scan angle: maximum 60 °

Laser service life: ≥10000 hours (test results in the constant temperature environment)

Laser level: Class IV

Control mode: SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, Phone APP control（Android，ISO)

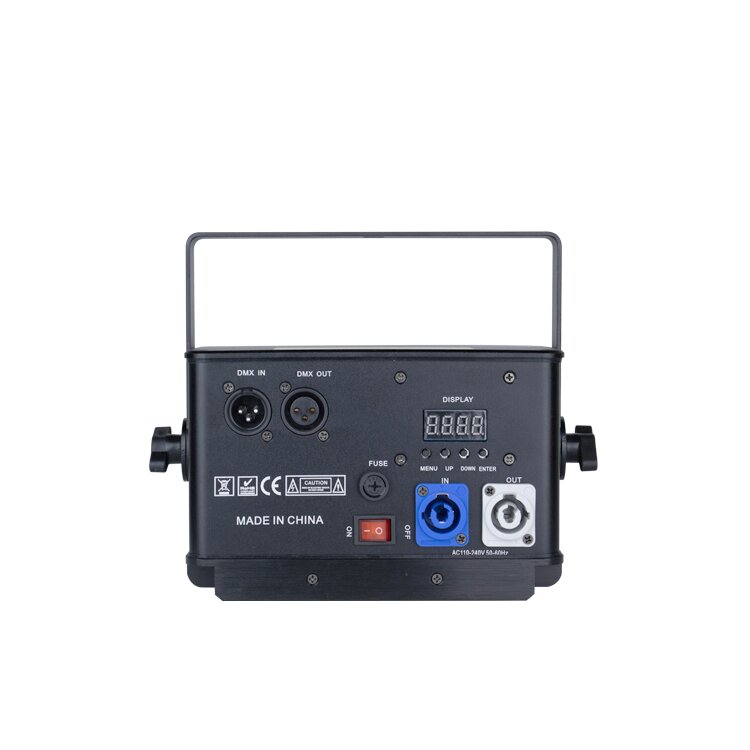

Back control: AT-S2 digital display, 3 stitches 512 in/out,power input/output, fuse

Work temperature: -10C-45 ° C

Voltage: 100-250V

Rated power: 20W

Application: stage, DJ, event disco, club, bar, etc.

Size: 19*14*12.5cm (L* W * H)-- net weight: 2kgs,

carton pack:28*24*25cm-GW.:3KG,2pcs-47*32*26cm,4pcs-47*29*50cm

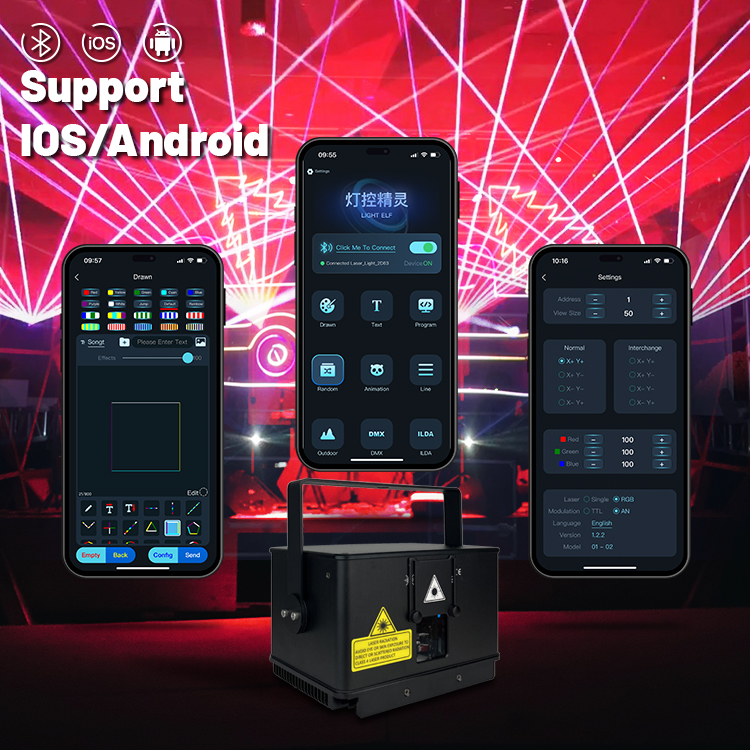

Phone app control:support IOS/ANDROID

Perfect Effect
