RDM Photoelectric isolation amplifier 8Dmx Splitter Artnet network extender For stage light
Brand: HQLIT
8-way Gigabit network extender
2 in 8 out:8-way Photoelectric isolation amplifier

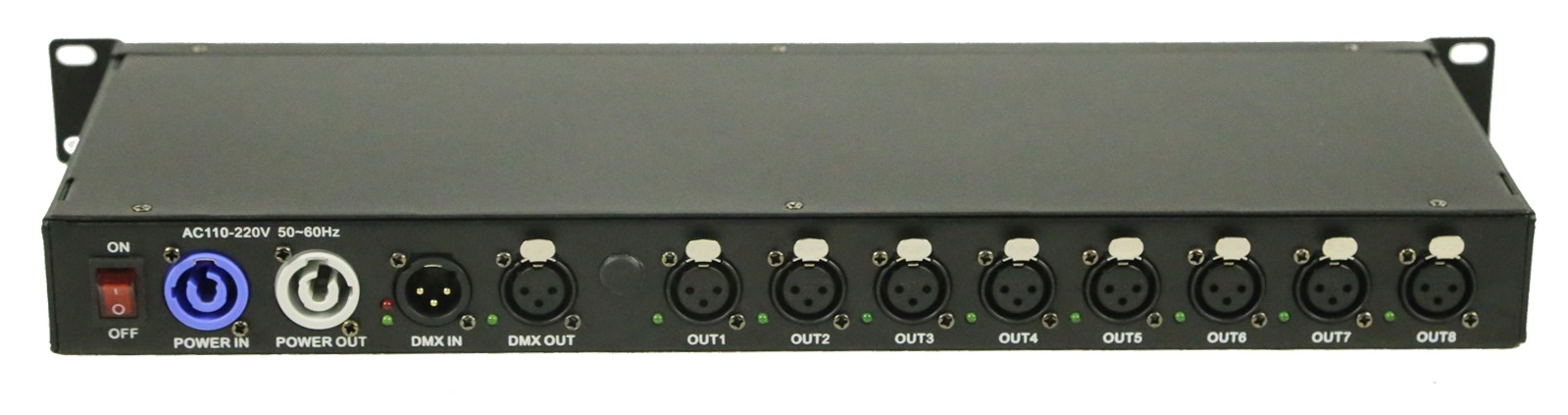

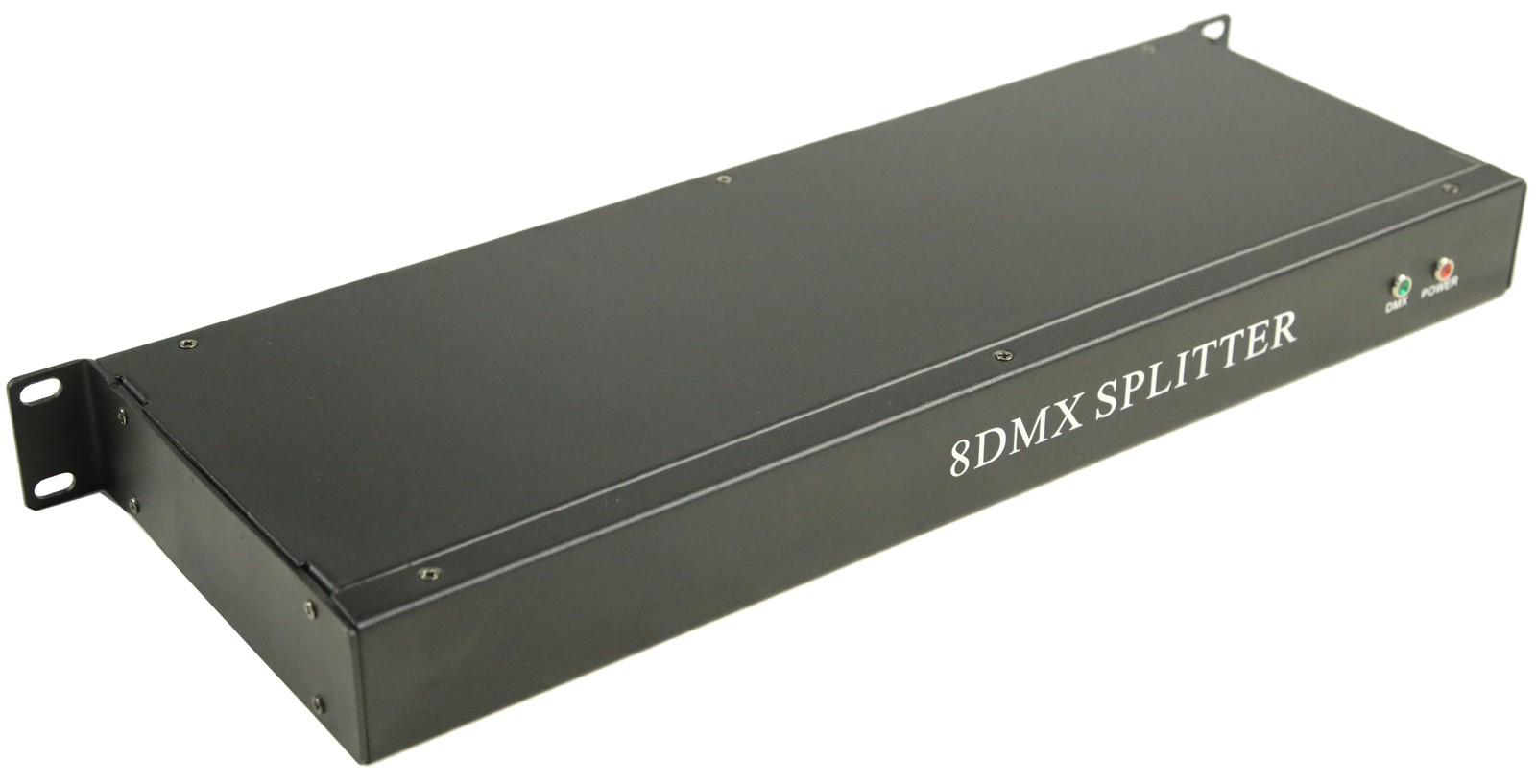

Photoelectric isolation amplifier
Parameter
Photoelectric isolation amplifier
1U design, a variety of installation methods are convenient for different scenarios
Supports the RDM function
1 input interface, 8 output interface
Standard DMX512 digital signal
DMX signal optimization and shaping amplification to extend the transmission distance of DMX signal
DMX signal distribution function
High voltage photoelectric isolation technology, isolation voltage > 1000V
Wide voltage 100V~240V 50/60Hz, the power cord can be connected in series

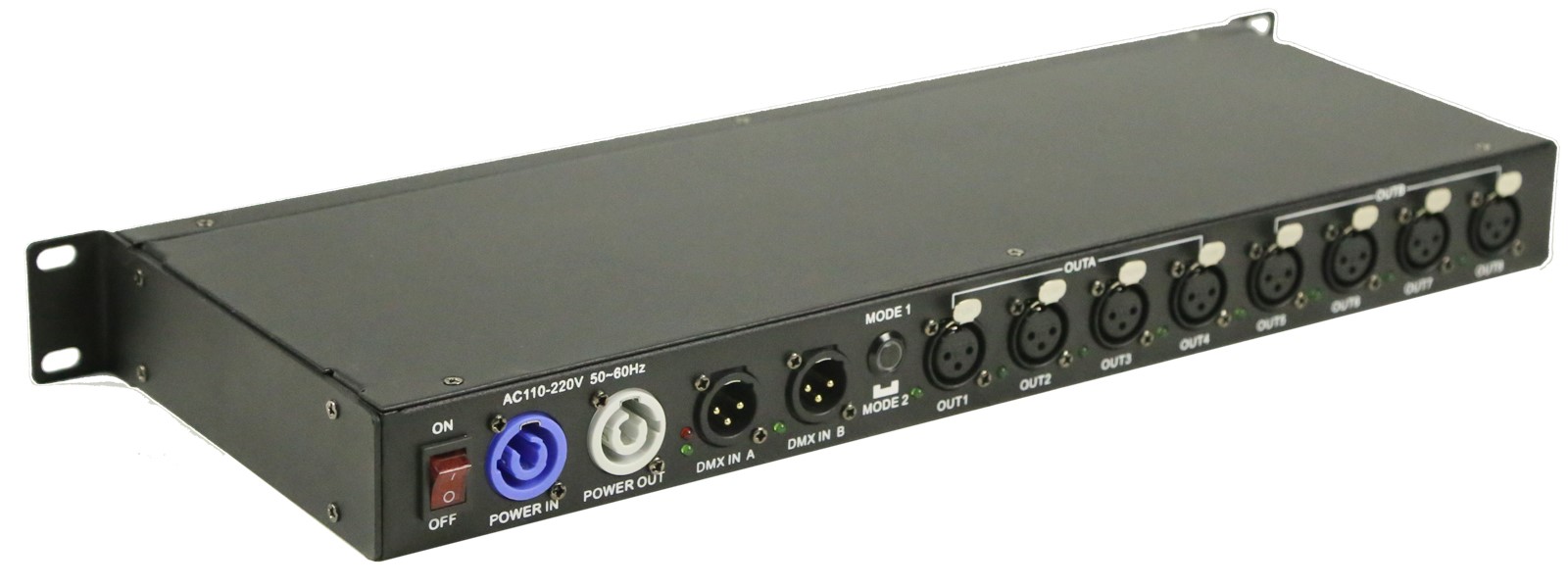

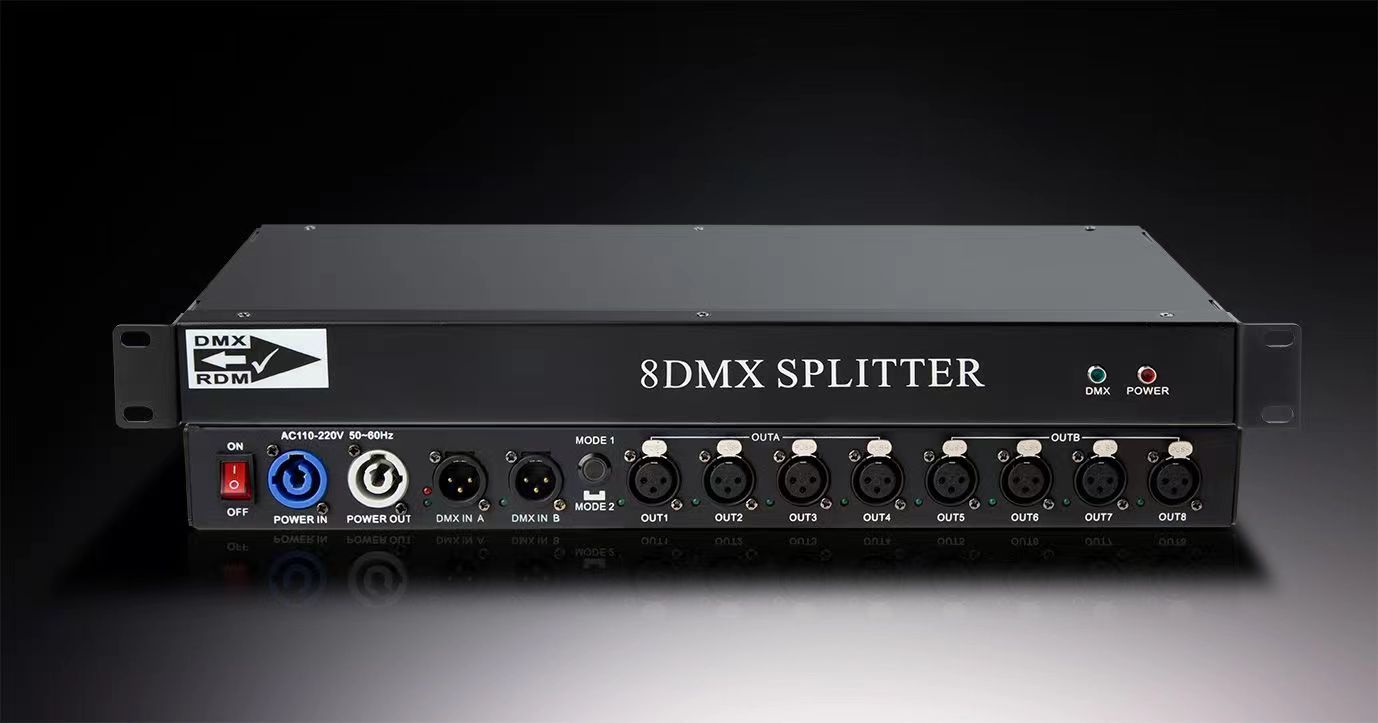

RDM DMX-8 splitter(2in/8out)
1U design, a variety of installation methods are convenient for different scenarios
Supports the RDM function
Two input interfaces and eight output interfaces
Two modes: 1 in 8 output, can be switched to 2 input 4 output
Standard DMX512 digital signal
DMX signal optimization and shaping amplification to extend the transmission distance of DMX signal
DMX signal distribution function
High voltage photoelectric isolation technology, isolation voltage > 1000V
wide voltage 100V~240V 50/60Hz, the power cord can be connected in series
PACK SIZE:52*23*12cm
G.W.:3kg

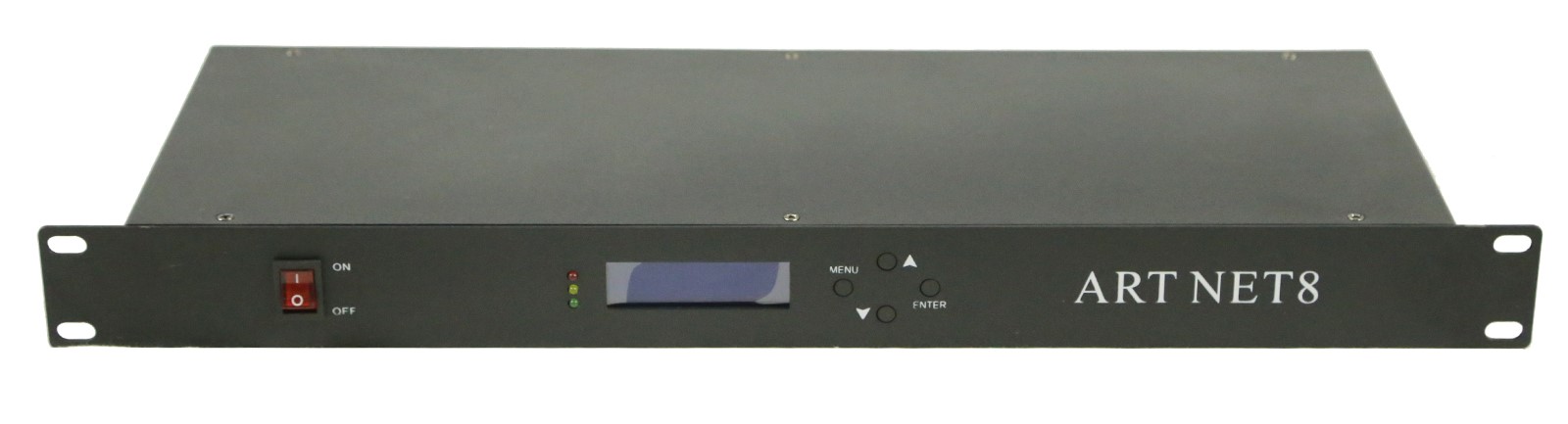

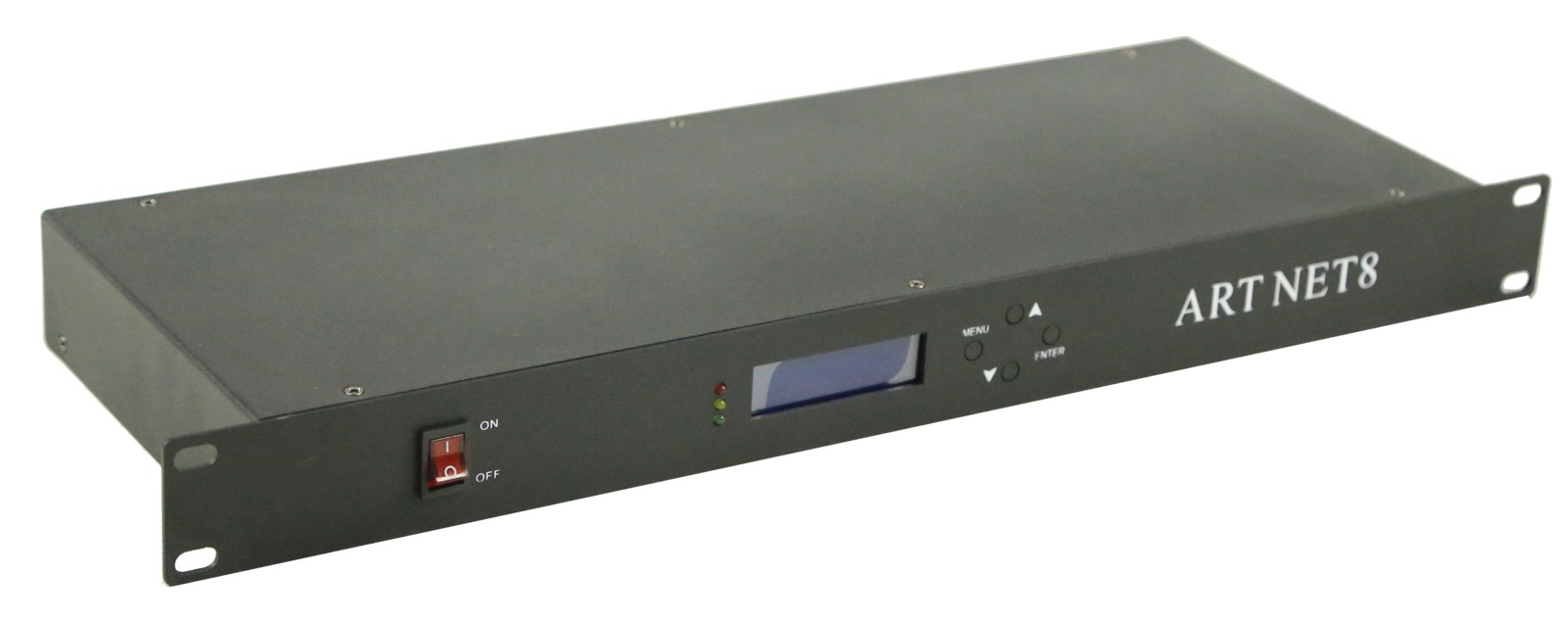

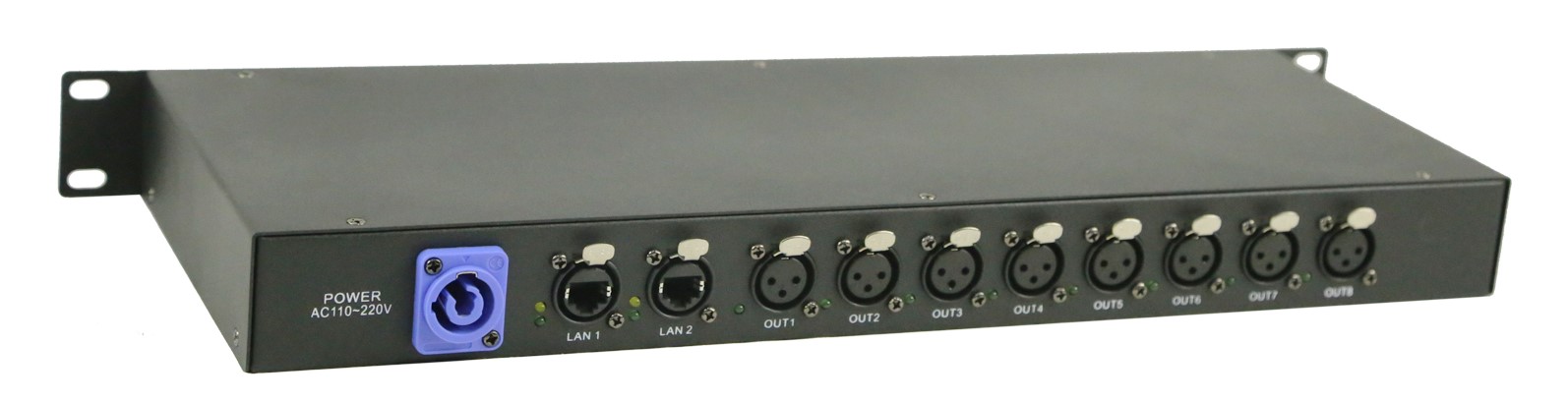

8-way Gigabit network extender
Standard 1U design
Data communication based on Artnet network protocol
2 gigabit network ports, faster data transmission speed
8 standard DMX512 output, expandable 4096 channel parameters
Multiple extenders can be connected in series
Each port has an indicator light
Equipped with LCD display
Wide voltage design 100V~240V 50/60Hz
PACK SIZE:52*23*12cm
G.W.:3kg
