Parameter

Linux operating system

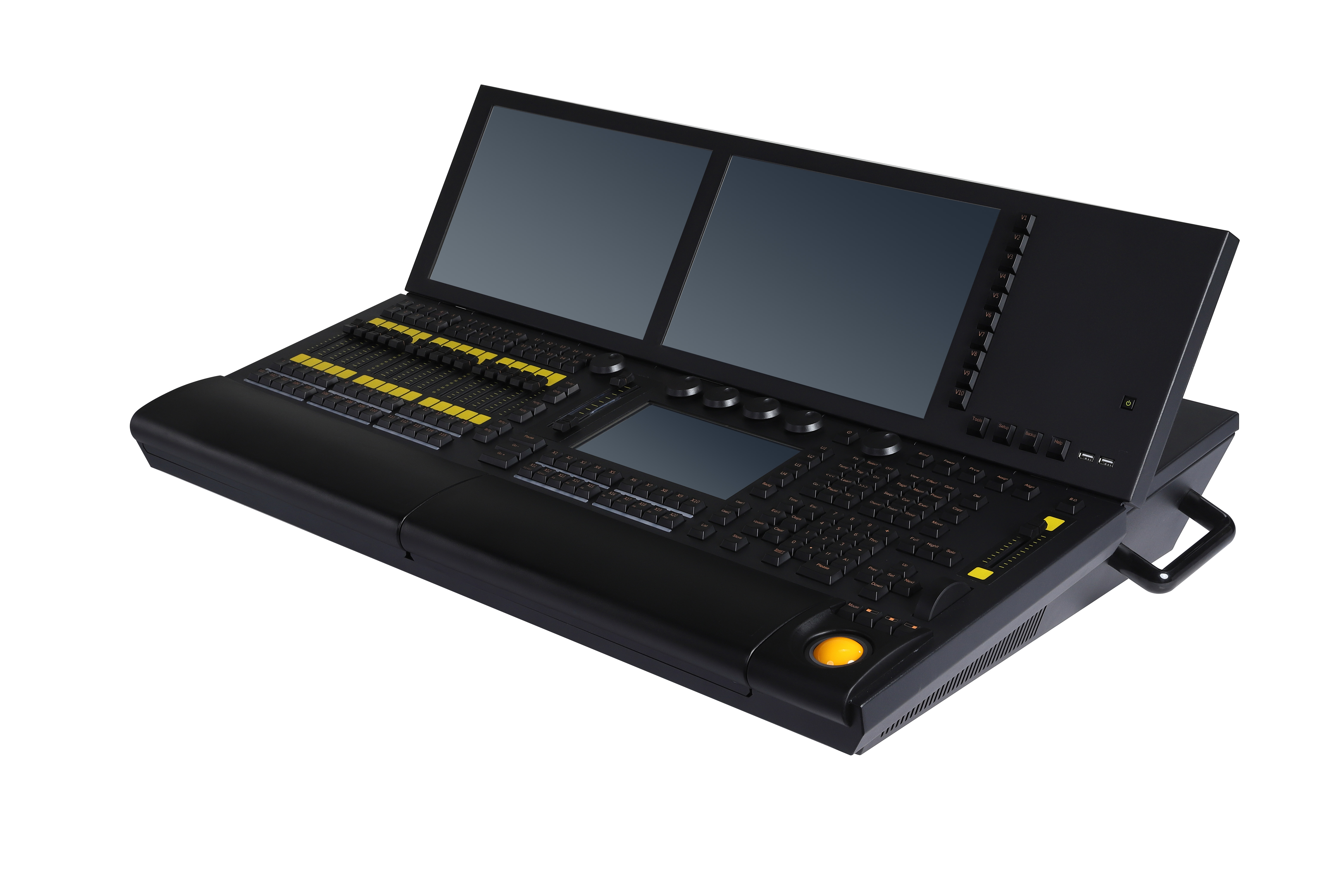

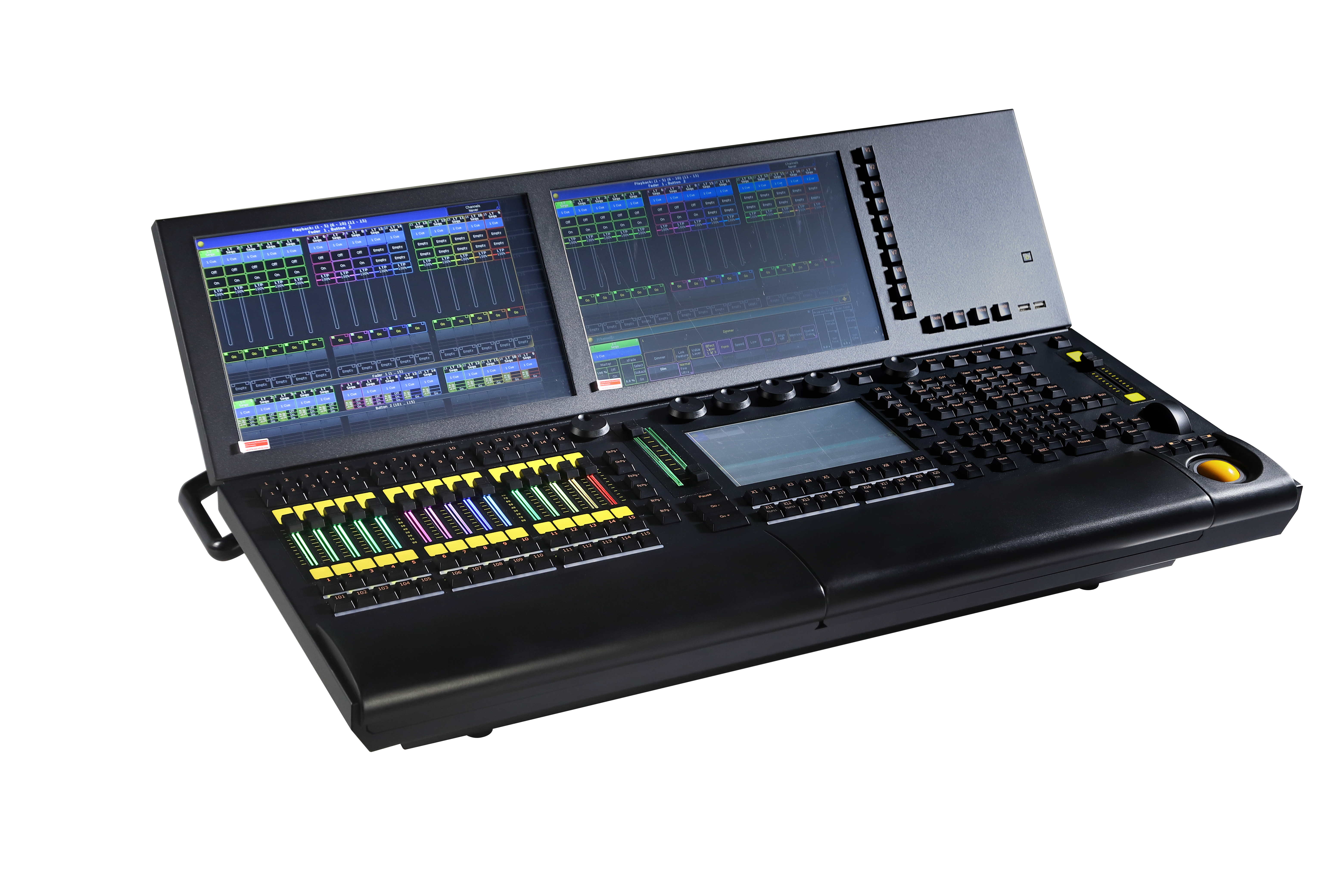

Two 15.4-inch full-view industrial touch screens, electrically adjustable viewing Angle

A 9-inch touch screen, built-in independent graphics card, can be connected to 2 touch screens

Custom industrial motherboard, i7CPU, 8GB RAM, 128GB SSD

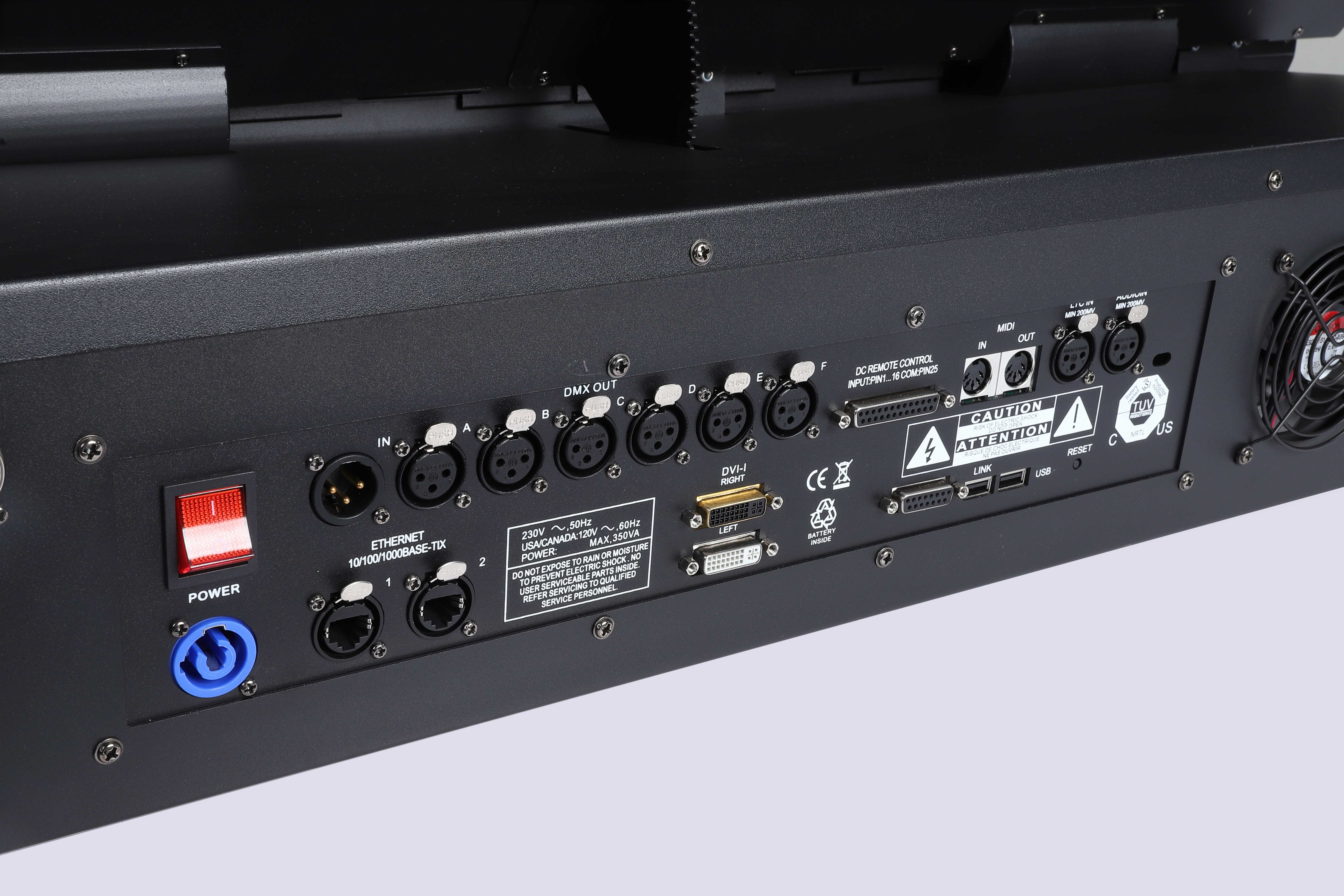

6 DMX outputs, 1 composite input (can be set as output)

Up to 65536 channel parameters can be supported when connected to the NPU

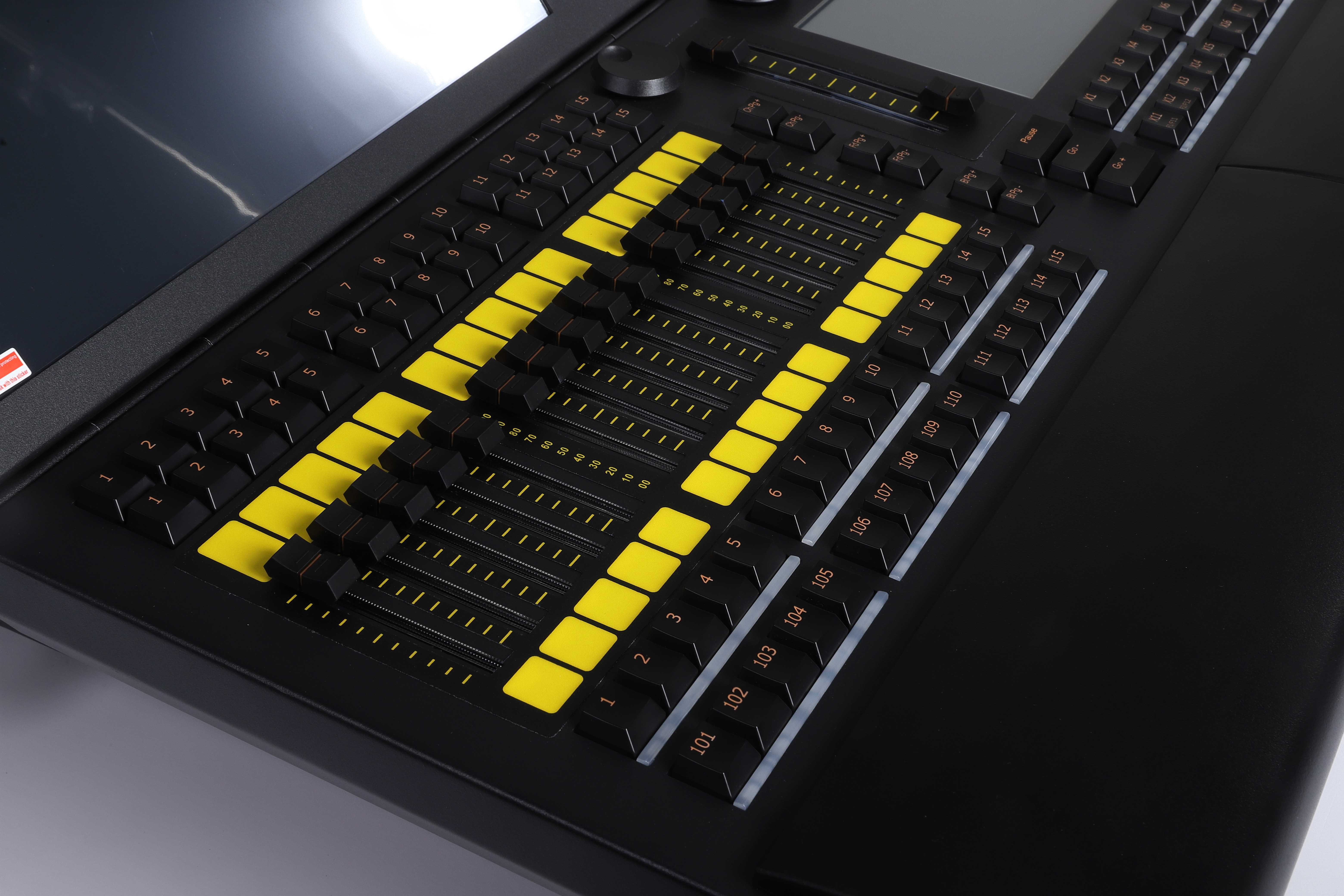

15 RGB backlit touch sensitive electric push rods

2 RGB backlit A/B electric push rods

1 total control electric push rod, 50 executive program keys

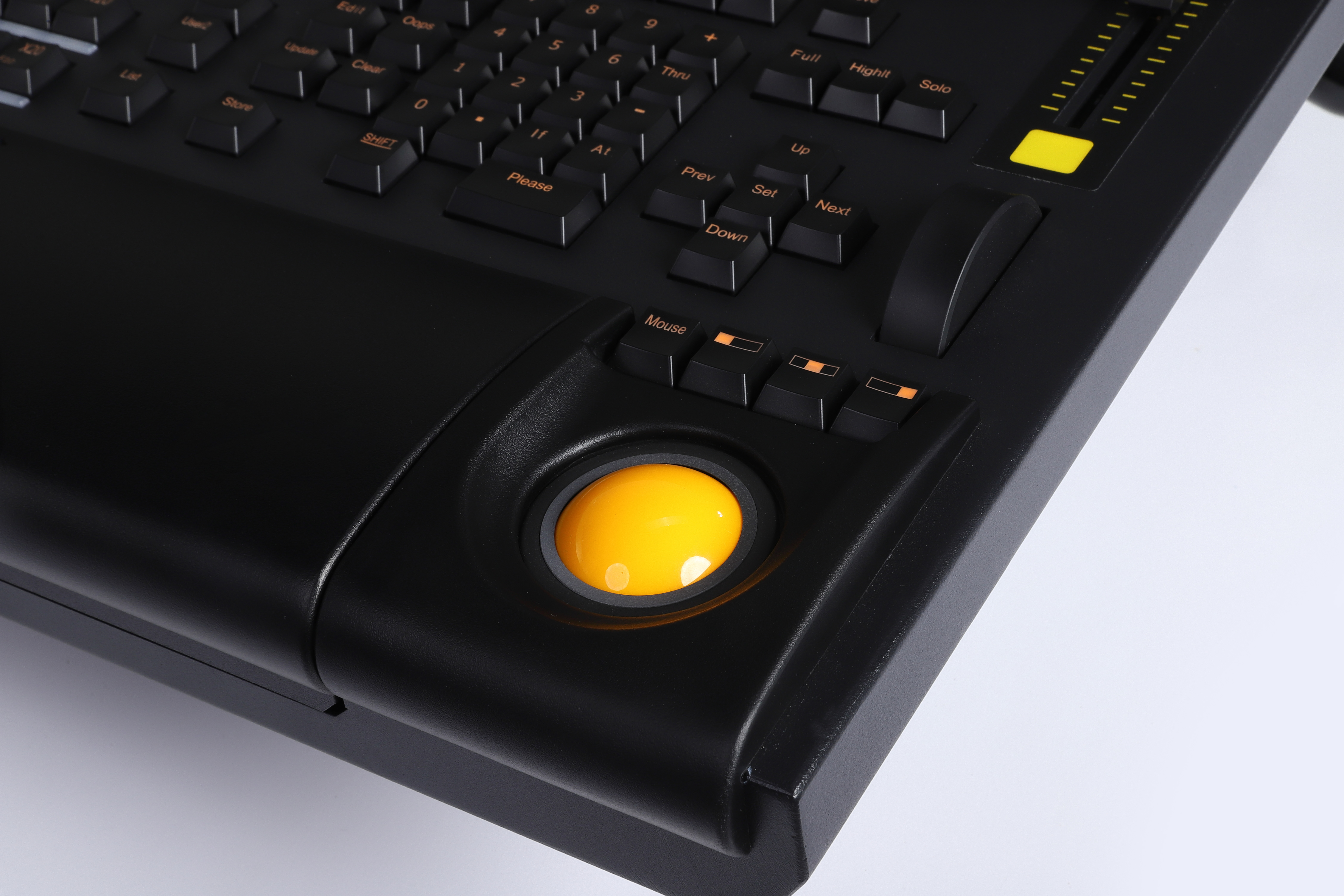

1 dimmer wheel, 1 controllable XY axis high-precision imported track ball

6 high precision wear resistant optical encoders (with Push function)

Two gigabit network ports, support MA NET, ARTNET and other signals

5 USB ports, 2 work light ports

MIDI and LTC/SMPTE timecodes are supported

PACK SIZE：104*91*38cm
G.W.：83kg

Support multiple online backup, support mobile phone, iPad control

Built-in 1 drawer, built-in adjustable yellow backlit mechanical keyboard

Wide voltage AC 100V-240V 50/60Hz, built-in UPS

Supports the RDM function
