Parameters

Input voltage: AC100-240V, 50-60HZ
Light source: 230W/295W bulb+ RING 5020 strip light,
Total Power: 350W
Optical device: six-layer coated lens,
Beam angle; 0-3.9 degrees;
Electronic Focus; 20m, 50000LUX
Horizontal scan: 540 degrees; Vertical scan: 270 degrees.
Pattern disc: 14 rotating pattern pieces + white circle; with pattern jitter and pattern arbitrary positioning function;
Color palette: 14 colors + white light, with two-way rotating rainbow effect.
Prism disc: 230--24 face（8+8+8） prism,  295--8+48 FACE

can be rotated in the opposite direction, and has prism positioning function.
Flash: Double blade flash, up to 13 times / second.
Dimming: 0-100% linear dimming.
Atomization: 0-100% linear atomization.
Channel: 18 channels

Control Mode:DMX-512/Master-Slave/Auto/Sound

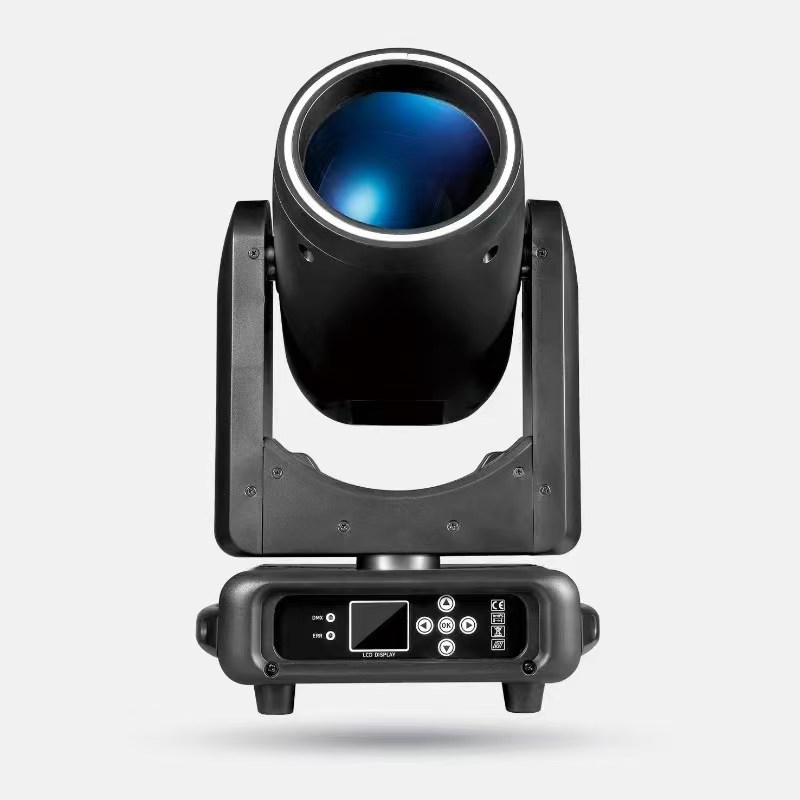

Display panel:LCD display

Pan:540º &Tilt:270º(16bit) Electric correction

Dimmer:0-100% linear dimmer

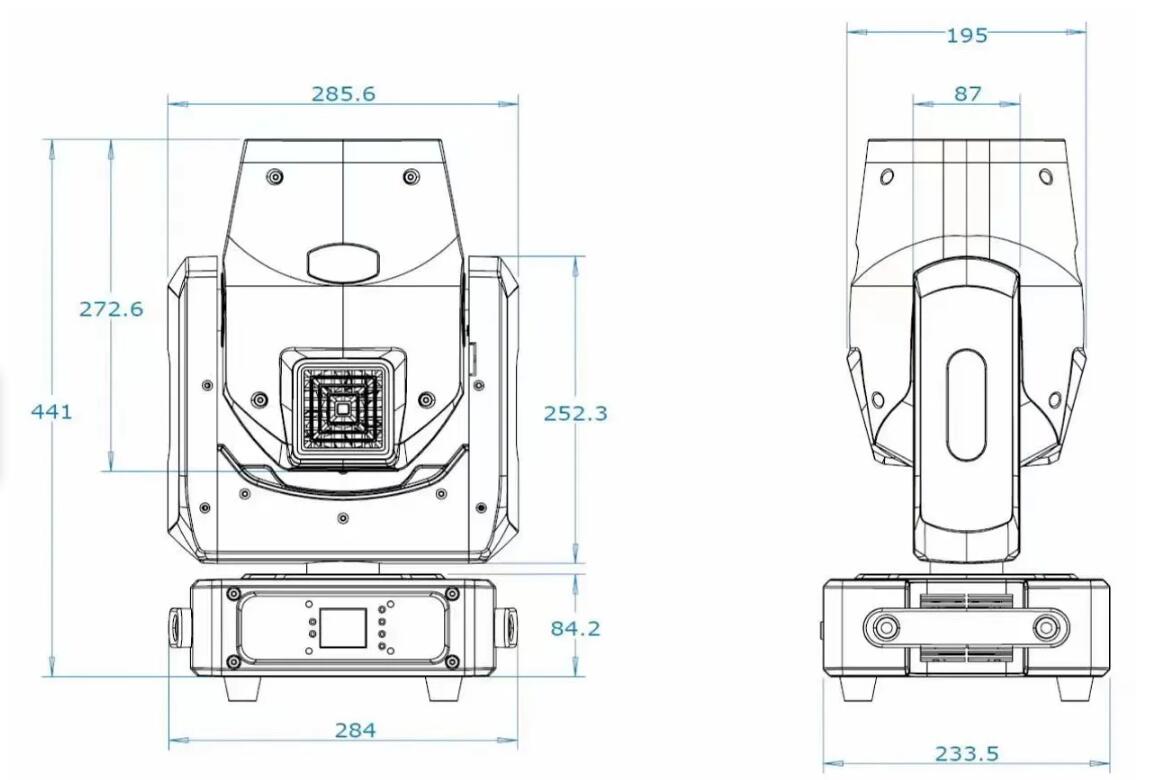

SIZE:26*24*45cm; Net Weight:10.8Kg

Gross Weight:13Kg

Package Size：51*38*36CM

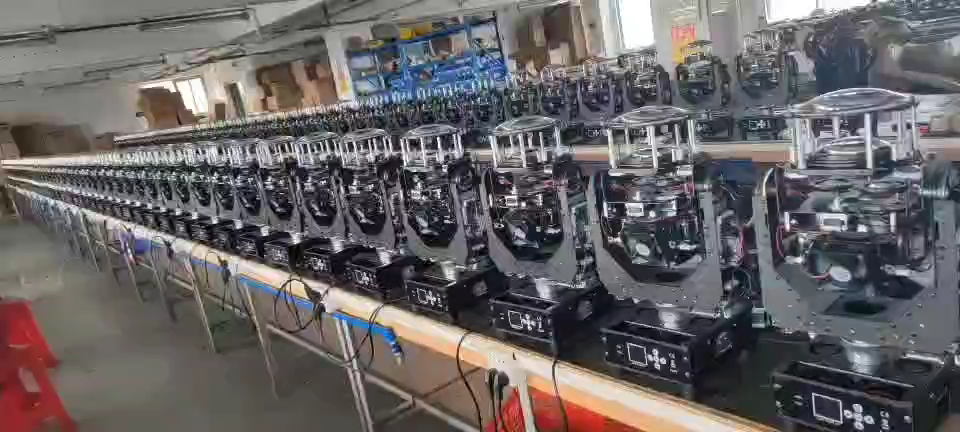

Produce Line
